my first diy (Read 4032 times)

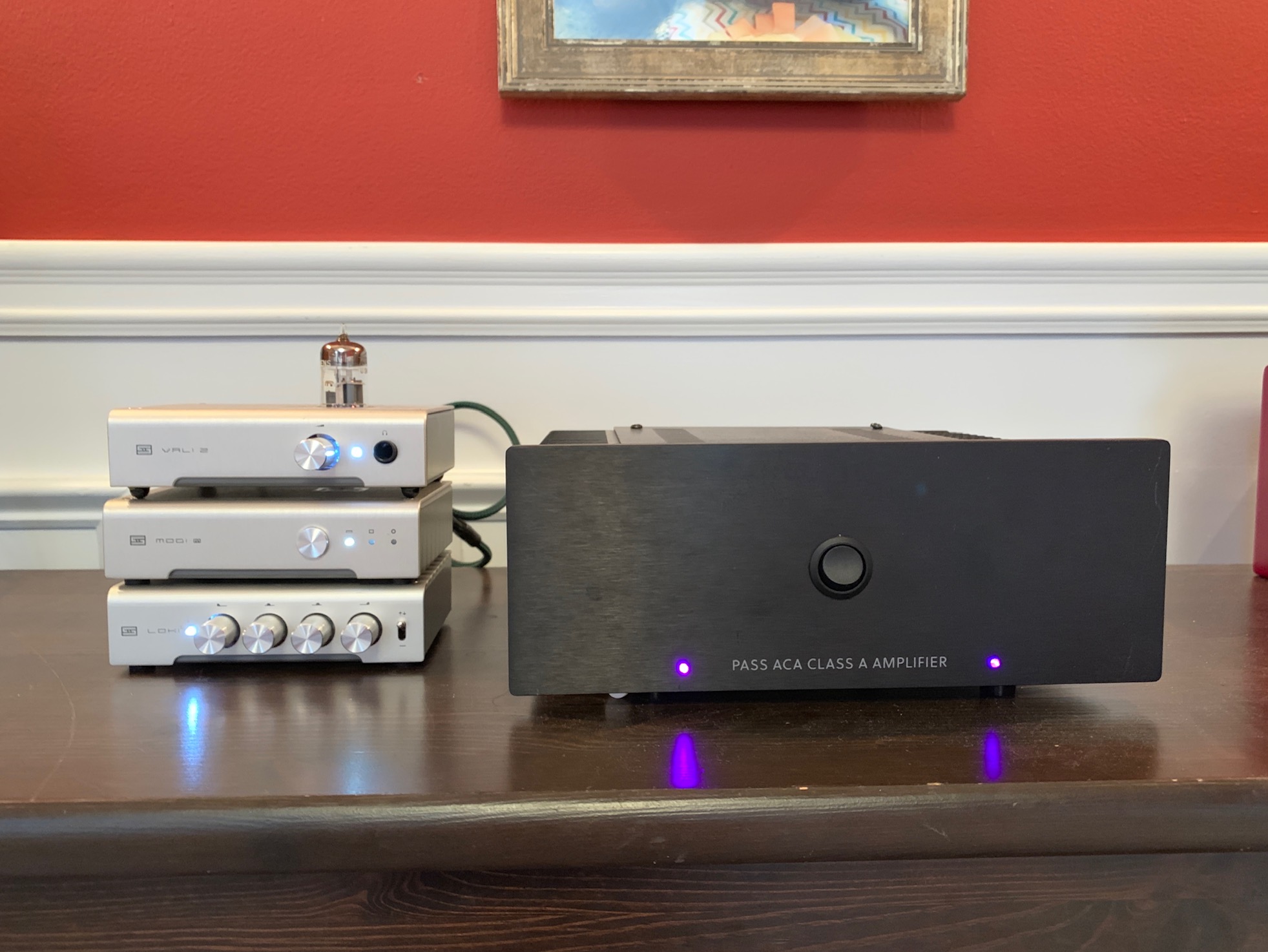

MyBlueSky Verified Member An honest tune with a lingering lead Posts: 31	my first diy 02/22/19 at 18:34:20 Just built the Amp Camp Amp from the DIY audio store for a small system in our living room. 8 watts a side, class A, solid state designed by Nelson Pass. Sounding very sweet being fed by a Schiit stack, and driving a pair of monoliths. I think the next project will be the Zkit4 gain stage.
Back to top	IMG_0162.jpg Torii mk lV, CSP3, Z Rock 2, Z Box, Nelson Pass Amp Camp Amp, RME ADI 2, Denafrips Venus II, Music Hall mmf 7.3, AVA Vision Q phonostage, Sumiko Bluepoint Evo, Panasonic DP-UP 9000, 947 Monoliths, Zu Omen DW mk2, Omega Super 3 HO monitors, Zen silver RCA IP Logged

rock4016 Verified Member Posts: 23	Re: my first diy Reply #1 - 03/06/19 at 18:19:26 Looks awesome! I've been thinking about ACA for a while now, I've got the boards and most of the parts, just need a chassis.
Back to top	Select #145 (completely rebuilt) DIY SPUD 6CL6 DIY EL34 SE DIY "Red Light District" EL84 PP amp Scott Nixon UFO USB Dac Dual 721TT Grado Red Pass Labs Pearl Phono Stage DIY 76 Linestage Hathorne Audio 15" PSI Open baffle speakers, with 15" Augies Sansui IP Logged

litefootdan Seasoned Member Posts: 176	Re: my first diy Reply #2 - 03/07/19 at 02:12:10 Nice little setup! Can you comment on how the ACA sounds?
Back to top	Ortofon 2M Bronze \| Merrillized AR "The Turntable" \| ZP 2 \| SE84UFO25 \| HDT \| Jensen Alnico 15's on the low "OB" IP Logged

Geno Seasoned Member Without music, life would be a mistake. Posts: 2000	Re: my first diy Reply #3 - 03/09/19 at 19:12:30 Looks like a stack of Schiit to me
Back to top	(2)SE84UFO(Balanced Monoblocs) OR Sansui AU-222 Crown sub amp Cambridge Audio CXN(ModWright) • ZBIT SL-1210MK5(KAB Mods) Soundsmith Aida MKll cart • Darlington Labs MP-7 Otari MX5050-Bll2 R2R ZLC Power Cond. Lii Audio PT-10/W-15 in open baffles IP Logged

Lon Seasoned Member "Love without guts is worthless!" Philip K. Dick Posts: 23528	Re: my first diy Reply #4 - 03/09/19 at 19:16:13 Job well done! Pass amps have a great reputation and I bet this sounds nice.
Back to top	HR-1,ZBIT,ZROCK2,SEWE300B,CSP3-25mod; Rega RP3 all GrooveTracer mods;PSAudio:PST+DSD, DAC Mk II, P15,NPC,PowerBases,AC-12 pwr cbls, Reference spkrcbls; Mapleshade SamsonV3; VooDoo:Cremona+Amati interconnects, IsoPods; headphones: Sennheiser HD800S,ZMF Ori,Oppo PM1 IP Logged

MyBlueSky

Verified Member

An honest tune with
a lingering lead

Posts: 31

Re: my first diy
Reply #5 - 03/16/19 at 16:23:03

Thanks for the positive feedback. The build wasn't too difficult as the holes in the chassis were pre-drilled. Using a decent soldering iron and good solder made the work go smoothly. The kit included a comprehensive guide and the members on DIY audio were friendly and supportive. I thoroughly enjoyed the entire process.

The amp does sound great. It has a good grip on the low end with excellent dynamics. The soundstage isn't very wide or deep in our living room but to my ears it has a focus and for lack of better word a "density" that makes for an enjoyable sound with no fatigue. The monoliths have a nice synergy with this amp. The ribbon tweeters help squeeze some detail in the treble which is the not the most prominent or detailed. I'm unfairly comparing to my Torii lol. Source is currently a Mac-book pro running Audirvana Plus streaming Tidal via usb into a Project Pre Box digital S2.

Torii mk lV, CSP3, Z Rock 2, Z Box, Nelson Pass Amp Camp Amp, RME ADI 2, Denafrips Venus II, Music Hall mmf 7.3, AVA Vision Q phonostage, Sumiko Bluepoint Evo, Panasonic DP-UP 9000, 947 Monoliths, Zu Omen DW mk2, Omega Super 3 HO monitors, Zen silver RCA

IP Logged
