Zkit 100 ohm resistor on fire (Read 1280 times)

Chilaquil Verified Member Posts: 3	Zkit 100 ohm resistor on fire 06/03/23 at 22:34:30 Hi, I connected the amp to electricity and both 100 ohm caught on fire before this it just got the trans warm. wondering if I did something silly. Any ideas?
Back to top	IP Logged

bobc Senior Member Posts: 64	Re: Zkit 100 ohm resistor on fire Reply #1 - 06/04/23 at 15:11:02 U sure it was supposed to be a 100ohms resistor? Check value on schematic/board. Maybe a 1kohm?
Back to top	IP Logged

Chilaquil Verified Member Posts: 3	Re: Zkit 100 ohm resistor on fire Reply #2 - 06/04/23 at 18:28:50 It is on the schematic as 100 ohms.
Back to top	IP Logged

Mannytheseacow Ex Member	Re: Zkit 100 ohm resistor on fire Reply #3 - 06/04/23 at 20:26:15 Hard to say. Maybe post a little more info and some photos? Cheers.
Back to top	IP Logged

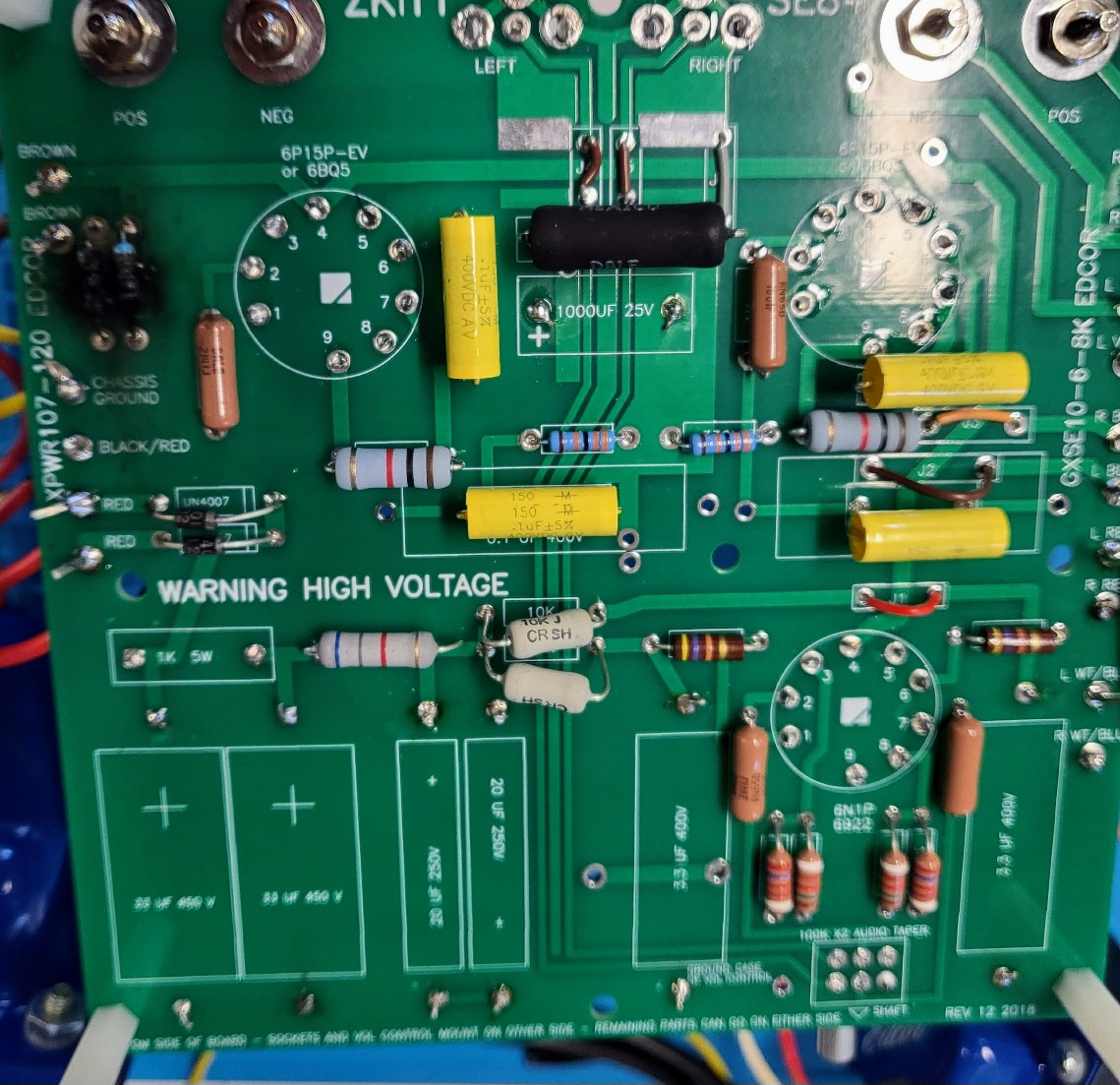

Chilaquil Verified Member Posts: 3	Re: Zkit 100 ohm resistor on fire Reply #4 - 06/04/23 at 21:31:10 Photo included. Soldered on both sides. Top left has the burnt resistors.
Back to top	20230603_1413533.jpg IP Logged

Mannytheseacow

Ex Member

Re: Zkit 100 ohm resistor on fire
Reply #5 - 06/04/23 at 23:25:07

Yep, looks smoked all right. Lol. Been there, that’s frustrating.
It would help to know more- photos of both sides, what the whole set-up looks like, etc. Did you use the edcor transformers? Did this happen the first time you plugged it in or what were you doing when this happened?
The 20uf and 33uf cap connections look a little charred too. The 150 ohm 5w resistor looks weird to me, but I’m no resistor expert. Double check the values on that. Check the values on all the components one more time for that matter. And double check your wiring from the power cable to the transformer to the board.

IP Logged

bobc Senior Member Posts: 64	Re: Zkit 100 ohm resistor on fire Reply #6 - 06/05/23 at 14:05:47 Double Check transformer wiring. The two 100 ohms go to the 6.3 v winding for a center tap. Maybe you swapped these.
Back to top	IP Logged
