Forums - Zrock2-25th

Delta 77

Senior Member

Posts: 57

Zrock2-25th
10/24/20 at 15:30:20

I’ve had my Zrock2 with full mods, for about 6-8 months now.
It’ definitely makes a delightful improvement in sonics..

Mine has always made a humming noise , even when I first plugged it in..
It’s not loud, but it is audible in the room when no music is playing..
It not a problem while listening to music in any way..

Pulling out of the system has been nearly impossible, because of the loss of sonics..

My question is does everyone’s Zrock2 make a humming noise..??
Probably wouldn’t be an issue, if the darn thing had an On/Off switch..!

Back to top

INNUOS-ZEN mk3(streamer)
HOLO-Spring3(dac)
DECWARE-Zrock2-25th
DENON-DP59L (TT)
DECWARE-ZP3
ARIC AUDIO-Passive pre
DECWARE-ZMA
TEKTON-Double Impact SE
TEKTON-Enzo sub x 2
PI AUDIO-UberBUSS
PIaudio/Hapa/Zenwave/TWL
DECWARE-CSP3-25th(HP amp)
ZMF ”Auteur”

IP Logged

HockessinKid

Seasoned Member

Posts: 1094

Re: Zrock2-25th
Reply #1 - 10/24/20 at 15:49:10

Mine does not hum. I put a couple of rubber-sorbothane anti-vibration pads underneath the ZRock you might want to give them a try, they're inexpensive:

https://www.supplyhouse.com/DiversiTech-MP-2E-EVA-Anti-Vibration-Pad-2-x-2-x-7-8...

Also, some have found interior parts close to the top of the unit, resulting in a slight buzz or hum. I believe they placed a self adhesive thin layer of rubber underneath to eliminate the problem.

HK

Back to top

Nottingham Interspace TT w/ Audio Technica AT-OC9XML cart + Modwright PH 9.0XT phono OR Modwright modded Cambridge CNX V2 > CSP3-25th Ann. preamp > ZMA-25th Ann. amp > PI Audio UberBUSS > Caintuck Audio Lii15 Magnum speakers > Snake River Audio & ZenWave cables

IP Logged

Archie Seasoned Member Posts: 2731	Re: Zrock2-25th Reply #2 - 10/24/20 at 17:41:30 Mine is absolutely quiet both before and after the anniversary mods. I don't know what's inside these but I'm surprised there is anything that can hum. Have you tried different tubes?
Back to top	ZLC Technics 1200G TT w/ Ortofon Jubilee MC cart ZMC1 ZP3 (25th A Mods) ZR2 (25th A Mods) CSP3 (25th A mods) ZMA (25th A mods) Homemade Big Betsy Speakers (F15s) Silver Cabling DIY Isolation platforms under amps & TT. IP Logged

Delta 77 Senior Member Posts: 57	Re: Zrock2-25th Reply #3 - 10/24/20 at 18:46:07 Sounds like I should give Steve a call on Monday.. I’ve been living with it.. It’s really not that annoying, and I thought it might fix itself .. Not to mention, I am going to have a hard time listening to my system without it..
Back to top	INNUOS-ZEN mk3(streamer) HOLO-Spring3(dac) DECWARE-Zrock2-25th DENON-DP59L (TT) DECWARE-ZP3 ARIC AUDIO-Passive pre DECWARE-ZMA TEKTON-Double Impact SE TEKTON-Enzo sub x 2 PI AUDIO-UberBUSS PIaudio/Hapa/Zenwave/TWL DECWARE-CSP3-25th(HP amp) ZMF ”Auteur” IP Logged

ScottNC Seasoned Member Posts: 335	Re: Zrock2-25th Reply #4 - 10/24/20 at 19:45:50 I think you will find that Steve can help you solve the issue without having to send it in, he did with mine. Good luck, it would be a shame to have to go without it, at least it would be for me and my system. Scott
Back to top	TORII MKIV-25th,ZBIT,ZROCK2-25th,ZTPRE-25th,ZLC,DNA2's, REL S/3 SHO MyTek Brooklyn DAC+,Sonore ultraRendu LinearPS,sonicTransport APi7 4TB Woo WA6, Sennheiser HD660s RoomTreatments,LineFeed,DHC1’s,DSR’s,ZENST,TriodeWireLabs,TimberNation Maple Plats IP Logged

will

Seasoned Member

Posts: 2920

Re: Zrock2-25th
Reply #5 - 10/24/20 at 20:22:41

Hey Delta,

Without going inside yet, I guess you checked to see if it is humming on both channels? Especially if only one channel, could it be an IC on that channel?

Or even if both channels, is it possible one IC pair could be picking up noise from close transformer proximity or from not crossing power cables at a hard angle? Along with Archie's thought about tubes, I wonder if you have a spare set of ICs you can try.

And last, have you tried a different power cord?

If you tried these and more and nothing worked I think that would help Steve help you.

Good luck!

Will

Back to top

All Modified: PSA-P5>DIY Strip/Shunyata Defender>RevolutionMacMini/Amarra-KTE Singxer/Gustardx20pro/ZBIT/CSP3>OldChen 300B/845, Torii IV>Omega S-A-H-O monitors/SVS Micro3000>Pi PCs-DIY PCs, ICs, USB, I2S, Speaker-SR and aluminum w ball bearing feet

IP Logged

Delta 77

Senior Member

Posts: 57

Re: Zrock2-25th
Reply #6 - 10/24/20 at 20:50:20

Hi Lon & Will,

Thanks for everyone’s feedback..

I’ve made some changes with my equipment over the last year..
Running dedicated circuit, PI audio outlets, Preamps, RCA & power cables, amps (just swapping equipment per season or for fun)..

The Zrock2 has always made the same noise from day one..
There is No noise in the system/speakers, my system is very very quiet..
The unit itself makes some sort of noise..
My uneducated guess would be some part or parts inside are making a vibration noise..

Back to top

INNUOS-ZEN mk3(streamer)
HOLO-Spring3(dac)
DECWARE-Zrock2-25th
DENON-DP59L (TT)
DECWARE-ZP3
ARIC AUDIO-Passive pre
DECWARE-ZMA
TEKTON-Double Impact SE
TEKTON-Enzo sub x 2
PI AUDIO-UberBUSS
PIaudio/Hapa/Zenwave/TWL
DECWARE-CSP3-25th(HP amp)
ZMF ”Auteur”

IP Logged

will

Seasoned Member

Posts: 2920

Re: Zrock2-25th
Reply #7 - 10/24/20 at 21:14:21

Quote:

There is No noise in the system/speakers, my system is very very quiet..
The unit itself makes some sort of noise.

Oh I understand now. That does seem to narrow it down to the unit, though I have had noisy tubes cause my CSP3 or Torii to hum more. I have never had a power cord ground issue, but being possible even with new cables, thought it could be worth a try.

Also I used to use an Uber, and though good sounding, still got some transformer hum here. Nice your system is otherwise so quiet.

Hope you get it solved soon!

Will

Back to top

All Modified: PSA-P5>DIY Strip/Shunyata Defender>RevolutionMacMini/Amarra-KTE Singxer/Gustardx20pro/ZBIT/CSP3>OldChen 300B/845, Torii IV>Omega S-A-H-O monitors/SVS Micro3000>Pi PCs-DIY PCs, ICs, USB, I2S, Speaker-SR and aluminum w ball bearing feet

IP Logged

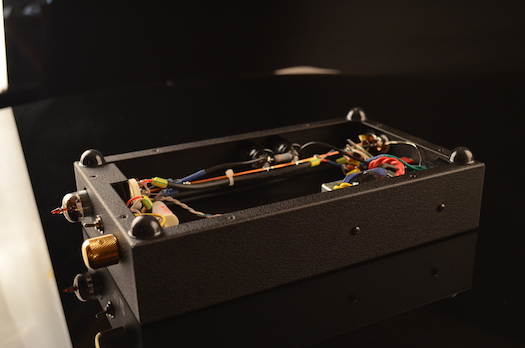

Archie Seasoned Member Posts: 2731	Re: Zrock2-25th Reply #8 - 10/24/20 at 21:24:10 This picture is from the product page. There does seem to be a transformer inside but it's hard to see for sure.
Back to top	ZROCK4.jpg ZLC Technics 1200G TT w/ Ortofon Jubilee MC cart ZMC1 ZP3 (25th A Mods) ZR2 (25th A Mods) CSP3 (25th A mods) ZMA (25th A mods) Homemade Big Betsy Speakers (F15s) Silver Cabling DIY Isolation platforms under amps & TT. IP Logged

Stefan Seasoned Member Posts: 119	Re: Zrock2-25th Reply #9 - 10/25/20 at 19:08:41 I had that hum too, this is the thread where I described it: https://www.decware.com/cgi-bin/yabb22/YaBB.pl?num=1546294101 My fix was a little piece of rubber between the transformer and the case surrounding it.
Back to top	- Stefan --------------------- Rega rp6, Lounge Audio phono pre-amp, Lonely Raven PC, T+A DAC 8 DSD, ZBIT, ZROCK2+25th, SE84UFO25, Torii IV, Denon AVC-1SE, Infinity IRS Beta, Tannoy Cheviot, ERRx, Tiny Radials, Woo WA-3, Sennheiser HD800S IP Logged

Delta 77 Senior Member Posts: 57	Re: Zrock2-25th Reply #10 - 05/26/21 at 19:34:28 "I had that hum too, this is the thread where I described it: https://www.decware.com/cgi-bin/yabb22/YaBB.pl?num=1546294101 My fix was a little piece of rubber between the transformer and the case surrounding it." This is what I did..! I just put a piece of foam rubber in-between the Transformer and the bottom plate.. No more noise..!
Back to top	INNUOS-ZEN mk3(streamer) HOLO-Spring3(dac) DECWARE-Zrock2-25th DENON-DP59L (TT) DECWARE-ZP3 ARIC AUDIO-Passive pre DECWARE-ZMA TEKTON-Double Impact SE TEKTON-Enzo sub x 2 PI AUDIO-UberBUSS PIaudio/Hapa/Zenwave/TWL DECWARE-CSP3-25th(HP amp) ZMF ”Auteur” IP Logged
