Possible circuit path issue
03/08/20 at 04:16:45

Hello fellow audiophiles,

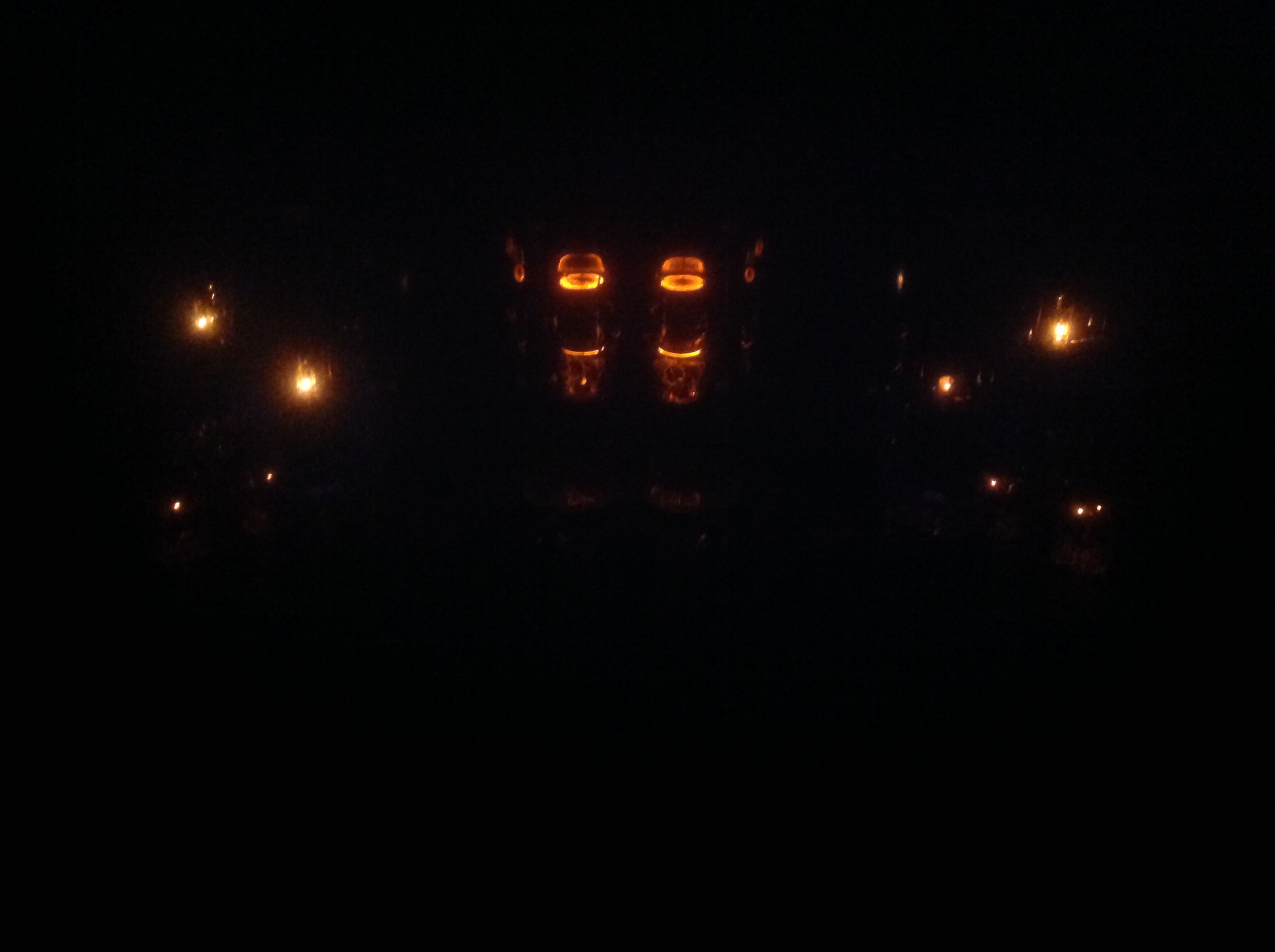

I may have a possible issue with my ZMA but wanted to get any smart forum members and possibly Steve's opinion before I make any drastic assumptions. My issue is with the B10 output tube/circuit. It appears that this tube does not glow as bright as the other 3 KT66's in the amp. I first suspected a failing tube, but I replaced it with a spare and the spare tube acts the same way. Another thing I have noticed is that I cannot seem to get the image centered. Right channel seems to be slightly out. This could be my room that is also causing the imaging issue. I have a very small room with some acoustic challenges. I am going to attempt to upload some pics I took so everyone can see the difference between the tubes.

I was going to send the amp in for the 25th anniversary upgrade later this year, but may have to accelerate that plan if this is truly a legitimate issue.

If anyone can advise on what this might be, I would appreciate it.

Thanks
Dave
