DIY component stand - finally done
03/02/18 at 14:11:19

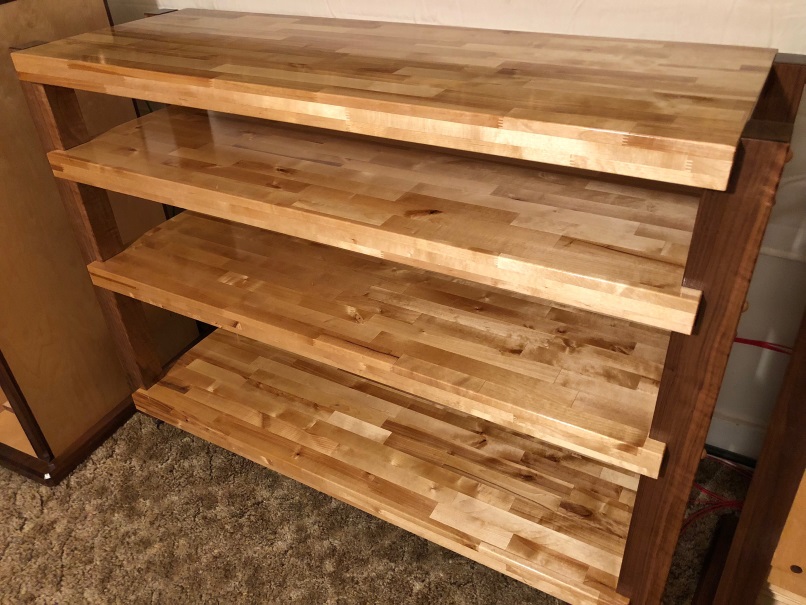

So finished up the stand I have been working on for a while now. I needed something closer to the wall and something that would fit all my stuff and be easy to wire the components up. Well easy to get to them. The old stand was a pain to wire things up. So this is done I can move on to finishing my two speaker projects. Well one is a modification to an existing speaker and the other is a new build.
Here are some pics.

Back to top


IP Logged

Share:

Likes:

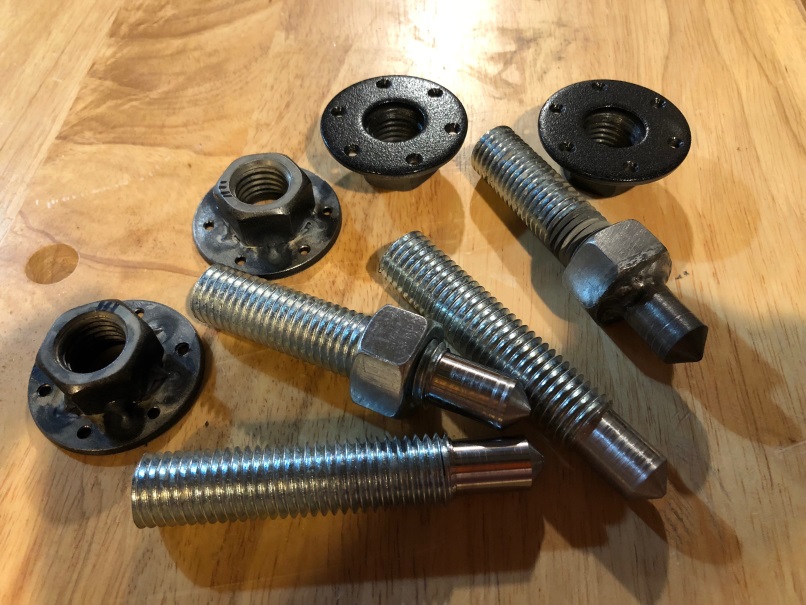

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: DIY component stand - finally done Reply #1 - 03/02/18 at 14:13:09 These are my leveling feet. 3/4" threaded rod, machined spike at the end and then welded a nut on so I can adjust these.
Back to top	stand_spikes-1.jpg IP Logged Share: Likes:

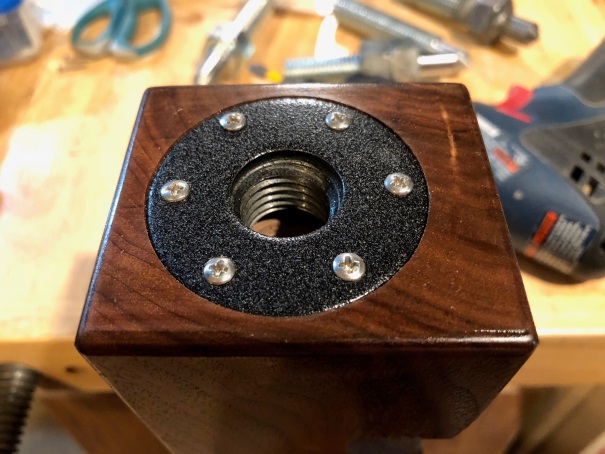

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: DIY component stand - finally done Reply #2 - 03/02/18 at 14:14:30 Here is the nut with a washer welded on that goes into the bottom of the stand posts.
Back to top	stand_nut-1.jpg IP Logged Share: Likes:

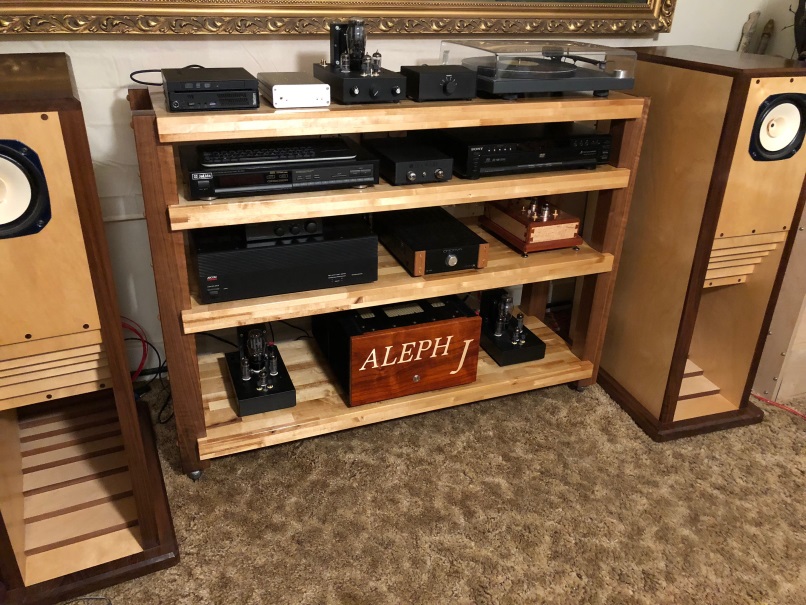

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: DIY component stand - finally done Reply #3 - 03/02/18 at 14:17:09 This is with the components. They are just placed to see how I might lay them out. I will probably move some stuff around. The stand is 36" tall and 48" wide. 2" shelves and 3x2" legs. Birch for the shelves and walnut for the legs.
Back to top	stand_3-1.jpg IP Logged Share: Likes:

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: DIY component stand - finally done Reply #4 - 03/02/18 at 14:23:02 Zygi, thanks for the poly recommendation. A little hard to work with on the shelves but perfect for the legs. I had no runs anywhere. That stuff is really good. So this thing had 3-5 coats of Tung oil and then 5 coats of Behlen Master Gel finish.
Back to top	IP Logged Share: Likes:

Jeff of Arabica Seasoned Member Offline Posts: 974 Tustin, CA	Re: DIY component stand - finally done Reply #5 - 03/02/18 at 14:57:31 Wow Deuce, that is beautiful! Nice work sir. So, where do I order?
Back to top	Jadis JA-30 MKII//ZMA//Zen Ultra//Waversa DAC3//ModWright Oppo UDP-205//EMM Labs DS-EQ1//DS Audio DS-003//FFYX T1803 TT//SonoruS Reel-to-Reel & tube playback preamp//Pipedreams Reference 21 Speakers IP Logged Share: Likes:

JD Seasoned Member Offline Posts: 573	Re: DIY component stand - finally done Reply #6 - 03/02/18 at 15:34:01 Beautiful work. JD
Back to top	IP Logged Share: Likes:

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: DIY component stand - finally done Reply #7 - 03/02/18 at 16:22:20 Thanks guys, I am happy with the way it turned out. Tonight I will wire everything up. I need to make a few new RCA cables to connect everything.
Back to top	IP Logged Share: Likes:

4krow

Seasoned Member

Offline

IMAGINE WHIRLLED
PEAS

Posts: 1683
powell, wyoming

Re: DIY component stand - finally done
Reply #8 - 03/03/18 at 05:27:54

I usually don't say much unless I am truly impressed. You have done a job that many people wouldn't have gotten the same results. What looks to be pretty simple is often not at all. The leveling feet for example took way more than they would seem to. And you got the mounts flush with the leg. That is a nice touch. What I appreciate the most is the sturdiness of the whole rack. It is not enough just to put thick slabs together without solidity. I look forward to photos of the next project that you have in mind.

Back to top

Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.

IP Logged

Share:

Likes:

Donnie Seasoned Member Offline Why does it hurt when I pee? Posts: 2592 Central Illinois.	Re: DIY component stand - finally done Reply #9 - 03/03/18 at 10:39:40 Very impressive!
Back to top	Owner of the infamous RED TORII and Dan the Redheaded Amp IP Logged Share: Likes:

Ace-Tone Seasoned Member Offline 8+ years with Decware gear and Loving it!!! Posts: 775 Lakewood, CA.	Re: DIY component stand - finally done Reply #10 - 03/03/18 at 17:29:29 Deuce, Love the way you've got all the woods matched. Rack looks bomb proof....Nice!
Back to top	SE84UFO25, ZP3, Zstage, ZR2, ZSB, DM947, HERESY iii VPI-Traveler2 +SS Zephyr MKIIIes. Cambridge CXC. Schiit Bimby DAC IC's Audio Envy, Decware, RAC-PC's, Mapleshade Dbl Helix+Spkr wires & jumpers Blue Circle PLC FX2X0e, Herbies, GIK, PI Audio DIY treatment IP Logged Share: Likes:

hdrider Seasoned Member Offline On the path with Decware. Posts: 721 Santa Cruz Mtns. Ca.	Re: DIY component stand - finally done Reply #11 - 03/04/18 at 16:42:34 Deuce - Really beautiful! Great looking work and wonderful wood tones. I have found that woodworking is not one of my skill sets, but I do love looking at the amazing finished products that a lot of forum members create. Keep us posted on the speaker projects and happy listening. Chris.
Back to top	CSP3, Rachael, ZP3, ZMC 1, Sony ES Bluray, Schitt Bitfrost DAC,Sota Star TT w/ FR-64, Hana SL Low Output Moving coil, Omega 7XRS Mk 2 walnut, DeepOmega 8 sub, Beldon 8402/Switchcraft IC's, Gamma Electrostatic phones. IP Logged Share: Likes:

deucekazoo

Seasoned Member

Offline

Posts: 461
x0|East Peoria|USA||0|0|IL,Illinois

Re: DIY component stand - finally done
Reply #12 - 03/05/18 at 15:14:59

Thanks guys for the compliments.
Woodworking is just a hobby for me. I have all kinds of ideas/projects but just not enough time to get them all done. But this one was moved to the top of the list. I was tired of the old stand. It was too big and shook every time I walked by. This one does not really move.
I created some new RCA cables over the weekend and I think I have all the components positioned as I want them.

Back to top

IP Logged

Share:

Likes:

Lonely Raven Seasoned Member Offline Jack of all Trades, Master of None Posts: 3567 Denver, CO	Re: DIY component stand - finally done Reply #13 - 03/07/18 at 21:51:32 Wow, great looking rack. Nice design and nice woodworking and finish! Maybe I can come by and see it next week?
Back to top	IP Logged Share: Likes:

Tripwr1964 Seasoned Member Offline Posts: 435 Dunlap, IL	Re: DIY component stand - finally done Reply #14 - 03/07/18 at 23:30:31 yeah i love that too! nice job!
Back to top	CSP3 25yr, CAD 120s MKII, Sunfire Signature600, Sota Star Sapphire, SME309, Hana SL, JC3+, Schiit bifrost multibit, CXC, MG1.6QR w/ ext xo & mye stands, OB Augies. herbies iso, VH audio flavor diy pwr cords, Beden 8402 & Dueland IC's, IP Logged Share: Likes:

Jake G Verified Member Offline Posts: 8	Re: DIY component stand - finally done Reply #15 - 04/13/18 at 23:13:04 Beautiful work! love the textures!
Back to top	IP Logged Share: Likes:

Lonely Raven Seasoned Member Offline Jack of all Trades, Master of None Posts: 3567 Denver, CO	Re: DIY component stand - finally done Reply #16 - 04/17/18 at 16:42:06 I forgot to mention, I got to see this rack in person - and yes, it looks even better in person! Well thought out, and well crafted! DC also has some interesting 3D printed ideas I got to take a peek at! Clever work my friend! Oh yeah, and thanks for the oil and the visit with all the dogs!
Back to top	IP Logged Share: Likes:

deucekazoo

Seasoned Member

Offline

Posts: 461
x0|East Peoria|USA||0|0|IL,Illinois

Re: DIY component stand - finally done
Reply #17 - 04/18/18 at 14:35:16

Thanks guys.
I really like this rack and it is a lot better than the old one. The old one I also made but I used round glass shelves. It looked good but was not practical. This new one is closer to the wall and a lot easier to move the components around and wire them up. The other upside that I did not think about is the light colored shelves. They do not show dust at all. With glass you see every spec.
