Wiring SET into Mono !HELP!
09/11/22 at 23:03:14

Hello All -
I have two SE84CKC(s) that I would like to wire into mono. I followed the .PDF of the owners manual (OWNERS MANUAL for Model SE84UFO PAGE 17).
Right away I noticed Amp 1 (Right Channel) had low volume, Amp 2 (Left Channel) very low w/ a lot of distortion. While chasing the 'bad' tube down... Always turning off and on. The fuse Popped on the power plug. Found a thread about blown fuse that said: pull rectifier, power on, every thing else lights up... amp = good, Rectifier may be bad. Did that - lit up - replaced rectifier. Both (Amp 1, Amp 2) Power up and work fine as SINGLE amps.

SO, I read the owners manual for SE84UFO2.1 (Bridging into Mono PAGE 7) - The Wiring description is DIFERENT from the .PDF graphic in (Model SE84UFO PAGE 17). This makes me wonder If the graphic is flawed?

QUESTION: Which is the correct way? I am totally confused...
I'm not sure if the .pdf graphic is the REASON why my rectifier zapped and blew the fuse. All connections were clean and clear and did not ground anything externally. (to the best of my knowledge).

HELP! I would like to get these wired into mono and take advantage of the 6 watts per side. As I said they are both working as single amps and I will be ordering some new output tubes. Any recommendations are appreciated.

Side Note: I have my first SE84C+ set up as reference with Tekton Lores (yes 3 amps total) and have found a bunch of old tubes at garage sales. Some look like they could be 'old unicorn magic' - Do I risk any damage switching/rolling 'unmarked' rectifiers?

Another Side Note: Refurbishing some old Allied Radio, Knight KN1286 with KN612HC 16ohm 12in woofers. Initial listen and thoughts seem promising - Anyone have with experience with these? Suggestions?

Thanks again - long time listener, first time caller!
Mike Clark

Back to top

IP Logged

Share:

Likes:

CAJames

Seasoned Member

Offline

"I've run every
red light on memory
lane."

Posts: 3270

Re: Wiring SET into Mono !HELP!
Reply #1 - 09/12/22 at 03:31:15

Are you trying to make balanced monos or "regular" monos? The diagram on page 17 of the UFO manual is for balanced. For that you need a balanced source and the custom XLR -> 2x RCA jumpers to break out the balanced signal into the L and R channel of the amps.

If you are looking for regular monos then the description on page 17 above the diagram is the same as the one in the UFO2.1 manual. This uses a RCA -> 2x RCA splitter to duplicate the signal into the L and R channel of the amp.

Back to top

[Volumio | Jay's CDT2 MRK3] -> Denafrips Terminator 2 + Gaia
Sumiko Pearwood -> Mapleknoll Athena -> Luxman SUT -> Mapletree Phono 3E
STR-1002 -> Woo WA22 -> 2x UFO25s, balanced monos
Omega SAM , Hifiman Arya, Audeze LCD-XC

IP Logged

Share:

Likes:

mclark

Verified Member

Offline

Posts: 10
Billings, Montana

Re: Wiring SET into Mono !HELP!
Reply #2 - 09/12/22 at 19:28:10

Thanks CAJames -
Yes, I have the RACA/split not balanced. I guess I'm a more visual guy than verbal and missed that in the description. So, do you think I 'shorted' anything because I wired it goofy? They seem to be working fine after I replaced the rectifier. My channels are a little weak so I assume I need to replace the output tubes, also, do I need to replace the signal tubes to help achieve the 6watts - any particular tube recommendations?
Thanks again - your info about checking the amps 'health' without the rectifier installed saved my bacon!

Back to top

IP Logged

Share:

Likes:

CAJames Seasoned Member Offline "I've run every red light on memory lane." Posts: 3270	Re: Wiring SET into Mono !HELP! Reply #3 - 09/12/22 at 19:33:34 I don't think you hurt anything the way you wired it, but you would expect little to no output. As for the tubes you may need to replace either or both the input and output tubes. Only way to know is to swap in known good tubes. Let us know how it goes.
Back to top	[Volumio \| Jay's CDT2 MRK3] -> Denafrips Terminator 2 + Gaia Sumiko Pearwood -> Mapleknoll Athena -> Luxman SUT -> Mapletree Phono 3E STR-1002 -> Woo WA22 -> 2x UFO25s, balanced monos Omega SAM , Hifiman Arya, Audeze LCD-XC IP Logged Share: Likes:

Dominick

Seasoned Member

Offline

Still like that old
time Rock and Roll!!

Posts: 1584
Bergen County, NJ

Re: Wiring SET into Mono !HELP!
Reply #4 - 09/13/22 at 02:49:10

Mike…I think you are in luck. I just recently purchased a SE84C+ CKC from a forum member. I was only getting sound out of one channel… so I thought it was a bad tube. After some investigation and a call to Decware, Sarah looked up Serial # and I found out that my amp is actually wired for mono.

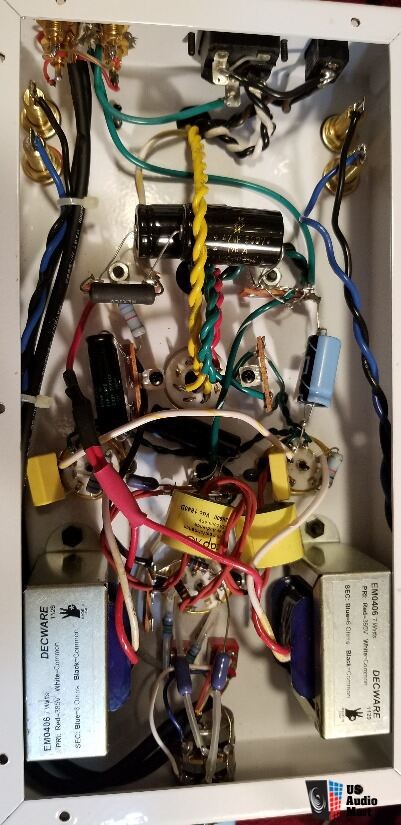

I just sent it in for full upgrades, a warranty transfer, and to have it wired for stereo. Here is a picture of the inside of my amp
