white/blue leads from Edcor go nowhere? (Read 1391 times)
one6180339
Verified Member
**




Posts: 18
white/blue leads from Edcor go nowhere?
01/24/22 at 03:11:56

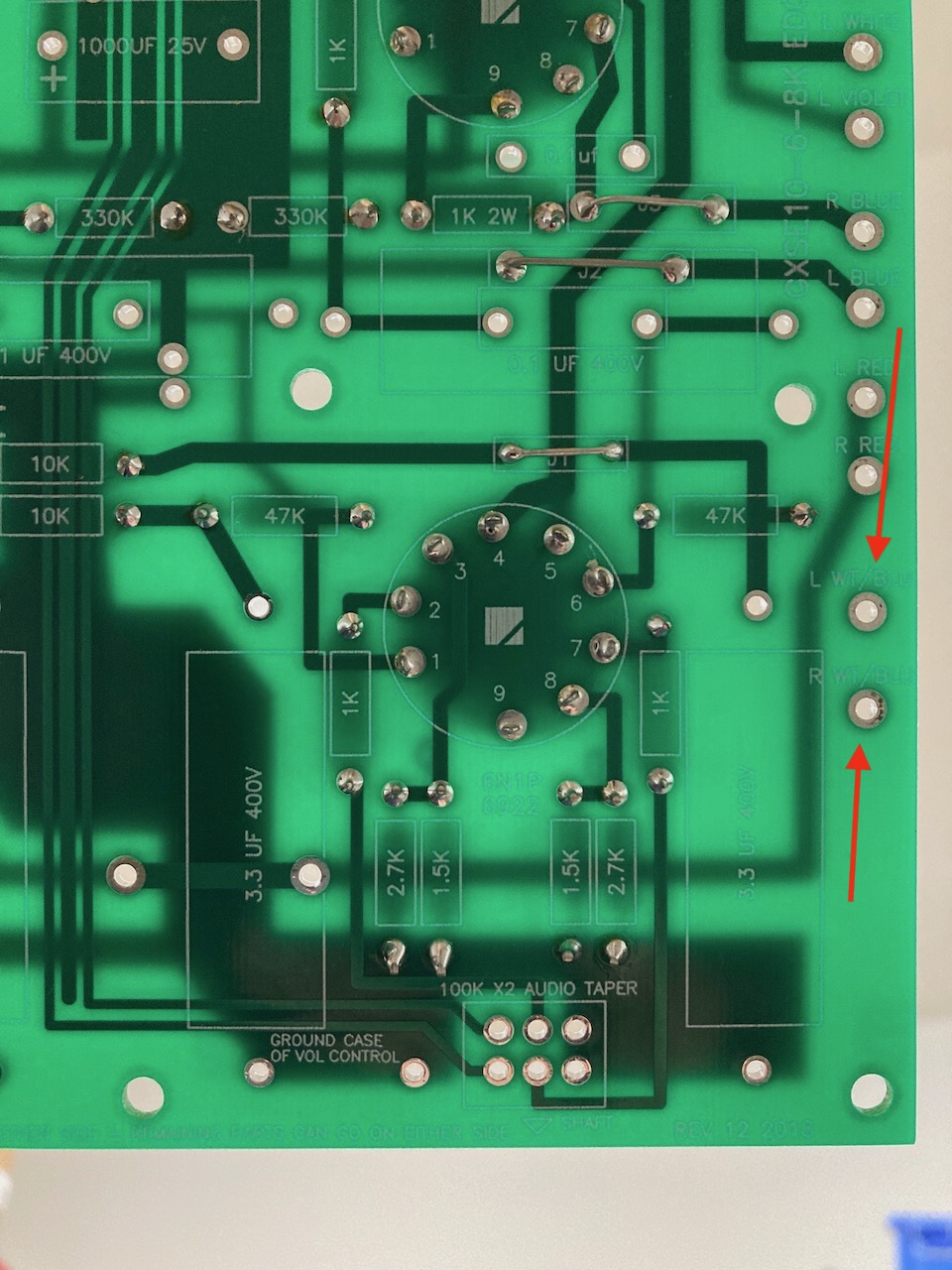

Looking at the board, the connection points for the white/blue leads do not appear connected to anything. Holding the board up to a light I see no traces from those points.

What is the point of connecting those wires?
Back to top

  IP Logged
BWC54
Verified Member
**




Posts: 14
Re: white/blue leads from Edcor go nowhere?
Reply #1 - 01/24/22 at 12:40:06
No point other than connecting them there guarantees they will not touch anything and short out. You can just as well cut the end off of them, put a piece of shrink wrap on them, and tie them up for future possible use in converting from triode mode to ultralinear.
Back to top


  IP Logged
one6180339
Verified Member
**




Posts: 18
Re: white/blue leads from Edcor go nowhere?
Reply #2 - 01/24/22 at 23:00:09
Thanks for the feedback. I think I'll wrap them and then tuck them under the transformers just in case a need for them arises.
