Forums - El Camino "Deuce"

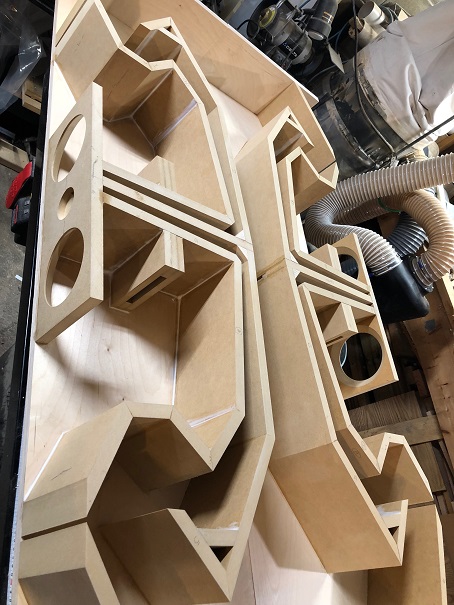

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	El Camino "Deuce" 03/13/19 at 17:57:46 As usual it takes me forever to get my projects done but finally finished these. I like to thank Bob for the internal parts and designing these. They are only 99% finished and still in the workshop. I have to make the x-over box cover plate for them to be 100% finished. So here are some pictures.
Back to top	inside_15.jpg IP Logged Share: Likes:

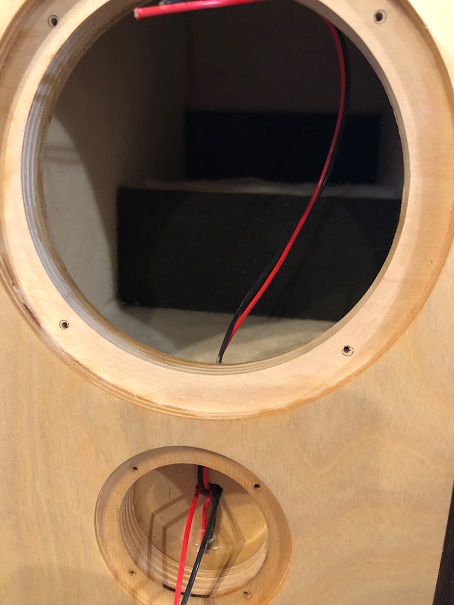

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #1 - 03/13/19 at 17:59:22 Wool felt inside.
Back to top	insulation_15.jpg IP Logged Share: Likes:

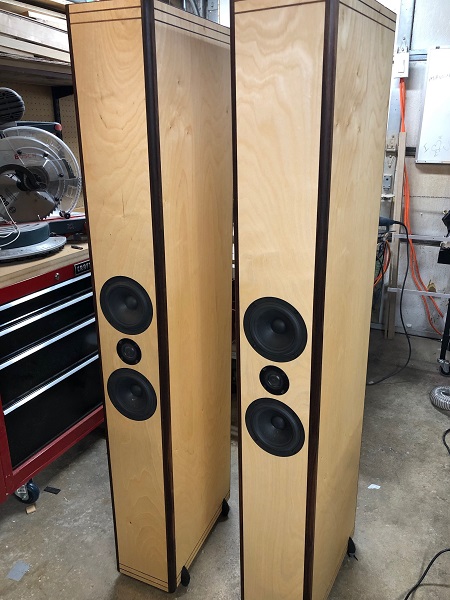

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #2 - 03/13/19 at 18:00:36 Front shot
Back to top	front_15.jpg IP Logged Share: Likes:

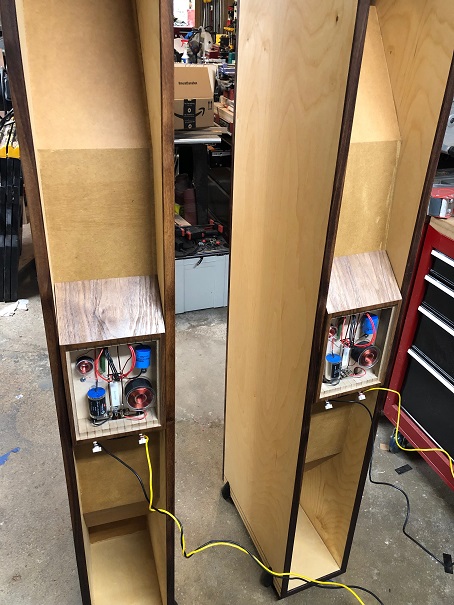

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #3 - 03/13/19 at 18:01:58 Rear shot
Back to top	rear_15.jpg IP Logged Share: Likes:

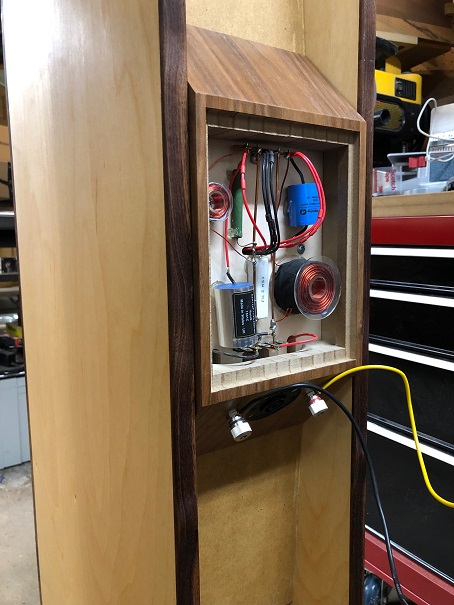

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #4 - 03/13/19 at 18:03:22 x-over closeup
Back to top	closeup_xover_15.jpg IP Logged Share: Likes:

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #5 - 03/13/19 at 18:09:16 I would also like to thank Randy for the recommendation on the finish he uses. This stuff works great, easy to apply and don't have to worry about runs or dust. This stuff is nice.
Back to top	IP Logged Share: Likes:

Donnie Seasoned Member Offline Why does it hurt when I pee? Posts: 2535 Central Illinois.	Re: El Camino "Deuce" Reply #6 - 03/14/19 at 01:26:02 Holy crap, very nice!
Back to top	Owner of the infamous RED TORII and Dan the Redheaded Amp IP Logged Share: Likes:

Steve Deckert Administrator Offline If the 1st watt sucks why continue? Posts: 6514 East Peoria IL	Re: El Camino "Deuce" Reply #7 - 03/14/19 at 02:20:21 It's pretty bad-ass alright... wait until you hear them ; ) Steve
Back to top	IP Logged Share: Likes:

Steve Deckert Administrator Offline If the 1st watt sucks why continue? Posts: 6514 East Peoria IL	Re: El Camino "Deuce" Reply #8 - 03/14/19 at 02:23:34 Too bad there won't be any bass! Hahaha just kidding. You'll need spikes for these, and probably wouldn't be a half bad idea to install a seatbelt as well as a headrest on your listening chair. Steve
Back to top	IP Logged Share: Likes:

deucekazoo

Seasoned Member

Offline

Posts: 461
x0|East Peoria|USA||0|0|IL,Illinois

Re: El Camino "Deuce"
Reply #9 - 03/14/19 at 14:54:32

Thanks Donnie.

Steve, the bass hits pretty good already. Can't wait to get them in the room. I do have spikes for these. The feet I bought long ago came with threaded rubber feet and brass spike feet. The rubber feet are on them for now because of the concrete floor. I have carpet in the room so the spikes will be put on when I get them in place. I will see what I can do about the seat belt and the headrest. ;D

Back to top

IP Logged

Share:

Likes:

Dana Seasoned Member Offline Posts: 723	Re: El Camino "Deuce" Reply #10 - 03/15/19 at 21:27:43 I can't help myself. I can't think about anything else everytime I see "EL CAMINO" https://www.youtube.com/watch?v=O5Bs2xGDFU8
Back to top	Tom Waits: And the newspapers were fooling, And the ash-trays have retired 'Cause the piano has been drinking, The piano has been drinking The piano has been drinking, Not me, not me, not me, not me, not me IP Logged Share: Likes:

Donnie Seasoned Member Offline Why does it hurt when I pee? Posts: 2535 Central Illinois.	Re: El Camino "Deuce" Reply #11 - 03/16/19 at 00:08:03 I was thinking of Elizabeth Cook singing "El Camino" myself. https://www.youtube.com/watch?v=S5yt0gXLkh0
Back to top	Owner of the infamous RED TORII and Dan the Redheaded Amp IP Logged Share: Likes:

Lonely Raven Seasoned Member Offline Jack of all Trades, Master of None Posts: 3567 Denver, CO	Re: El Camino "Deuce" Reply #12 - 03/19/19 at 07:19:40 Awesome work brother! Nice to see them coming along so well!
Back to top	IP Logged Share: Likes:

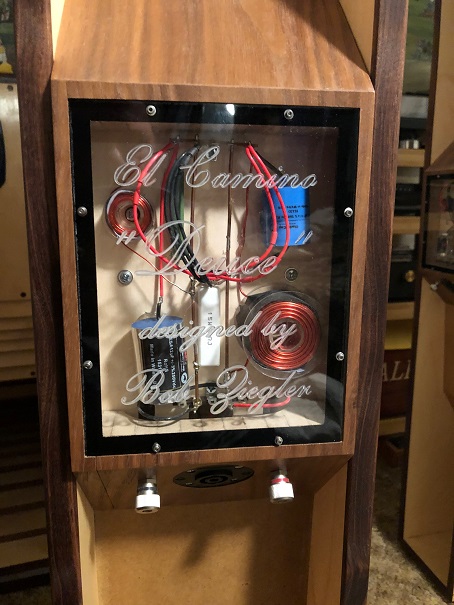

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #13 - 03/19/19 at 14:24:47 And now they are done, the final touch.
Back to top	xover_plate.jpg IP Logged Share: Likes:

Lonely Raven Seasoned Member Offline Jack of all Trades, Master of None Posts: 3567 Denver, CO	Re: El Camino "Deuce" Reply #14 - 04/01/19 at 19:03:22 That's a fantastic tribute to Bob!
Back to top	IP Logged Share: Likes:

Palomino Seasoned Member Offline Posts: 2519	Re: El Camino "Deuce" Reply #15 - 04/10/19 at 20:51:06 Wow, very well done!
Back to top	Mac Mini with LPSU/SSD running Audirvana Studio, Uptone Audio Regen on LPSU, Mytek Brooklyn DAC+, Ven Haus DIY Silver ICs, 25th Ann. Zen, PS Audio P5 Power Supply, PS Audio/DIY Power Cords, GR Research Speaker Wire, Lii Audio P10 based OB speakers IP Logged Share: Likes:

4krow

Seasoned Member

Offline

IMAGINE WHIRLLED
PEAS

Posts: 1683
powell, wyoming

Re: El Camino "Deuce"
Reply #16 - 12/12/19 at 00:33:18

I have looked at this post several times. I usually don't have much to say about craftsmanship when viewing many of these projects, but this one is well beyond so many examples out there.
What I do wonder about are the drivers used in this project. Also, mid-woofers, are they 8"?
Just recently, I got a pair of 8" Mark Audio 12P drivers in, and come spring will be building a set of DNA2 cabinets for them. I need just about all the help that I can get, since there aren't plans available just yet.

Back to top

Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.

IP Logged

Share:

Likes:

deucekazoo

Seasoned Member

Offline

Posts: 461
x0|East Peoria|USA||0|0|IL,Illinois

Re: El Camino "Deuce"
Reply #17 - 12/12/19 at 20:07:08

Thanks 4krow.

The drivers are 5" SB Acoustics. They are not really that efficient on paper, 88db at 2.83V which is like 85db at 1W. There are two so the efficiency goes up but my little 2 watt amp has no problem powering them in my room. Also the tweeter Bob picked for these is awesome.
I like to build speakers and I usually listen to the ones I make for a month or so and then off to the next project. For some reason these sound so good I have not had the urge to build anything else. Especially the Big Betsy speakers that Steve made. Those are tempting and look easy enough to make but there is something special about these, that I don't have the urge to make anything else, they just sound good. I am cheating a little because I am running 2 of the WO32 subs with these speakers to get the bass hit. They just blend together so well and I have a wall of sound with the detail I like.

Back to top

IP Logged

Share:

Likes:

4krow

Seasoned Member

Offline

IMAGINE WHIRLLED
PEAS

Posts: 1683
powell, wyoming

Re: El Camino "Deuce"
Reply #18 - 12/12/19 at 23:22:25

Interestingly, I started to build the WO32 a few years ago. I got the drivers, and even got the MDF, but it wasn't to be. Bass in a design such this is better than just about anything else out there to my ears.
Anyway, I find it surprising that a smaller driver can produce great sound, extending below expectations. I am breaking in the 12P drivers now, and adding a bit of subwoofer input to an 8" Audio Nirvana driver is making me shake my head. It takes just a little to get the bass that I like.
I am anxious to make the DNA2 and hear what more can be had from these drivers. Last year, I made the Smaller DNA horns and loved the sound, BUT man I just want more of it.

Back to top

Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.

IP Logged

Share:

Likes:

armstdav Seasoned Member Offline Posts: 181 Idaho Falls, ID	Re: El Camino "Deuce" Reply #19 - 12/13/19 at 05:00:36 I'm listening to 4krow's DNAs as I type this, and they're glorious. The DNA2s can only be mo' bettah. That said, the El Camino Deuces are way cool. My father sold Chevrolets, including a fair number of El Caminos. I miss him and the cool cars he would bring home. David
Back to top	IP Logged Share: Likes:

4krow Seasoned Member Offline IMAGINE WHIRLLED PEAS Posts: 1683 powell, wyoming	Re: El Camino "Deuce" Reply #20 - 12/17/19 at 04:19:03 Wow, thanks Armsdave, I must agree. Those Mark Audio drivers have something about them that I love. In fact, I have three drivers to try out when I get around to building the DNA2 speakers sometime in the future. Yup, a larger version of your driver will be first in line to audition.
Back to top	Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond. IP Logged Share: Likes:

Donnie Seasoned Member Offline Why does it hurt when I pee? Posts: 2535 Central Illinois.	Re: El Camino "Deuce" Reply #21 - 02/24/20 at 23:05:20 I keep coming back to look at these speakers. I'm wondering if my skill set is good enough? The other thought that keeps haunting me is what if I built a pair of these based on the DNA 2"s????
Back to top	Owner of the infamous RED TORII and Dan the Redheaded Amp IP Logged Share: Likes:

4krow

Seasoned Member

Offline

IMAGINE WHIRLLED
PEAS

Posts: 1683
powell, wyoming

Re: El Camino "Deuce"
Reply #22 - 02/25/20 at 01:18:54

Donnie,

Pretty much the same question as I had when I saw these speakers. For me, the answer was yes, and I am so awed with the results. One thing that did cross my mind was what are the possibilities of a marriage between the El Caminos and the DNA2 design. Either way, once you get the measurements established, the rest becomes the cutting of the material and the blade positioning of your table saw that will start with too obtuse of angle, and then working towards the right acuteness' required for a good fit. I suggest that you take the dive.

Back to top

Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.

IP Logged

Share:

Likes:

deucekazoo Seasoned Member Offline Posts: 461 x0\|East Peoria\|USA\|\|0\|0\|IL,Illinois	Re: El Camino "Deuce" Reply #23 - 02/25/20 at 15:20:54 Donnie, sure it is. I have seen your other projects and I don't think you will have any issue with this build. I do recommend a digital angle protractor, it will help with the angle cuts.
Back to top	IP Logged Share: Likes:

Donnie Seasoned Member Offline Why does it hurt when I pee? Posts: 2535 Central Illinois.	Re: El Camino "Deuce" Reply #24 - 02/25/20 at 17:14:28 If I base them off of the DNA 2's they would be around 6'8". Big speakers are becoming my thing.
Back to top	Owner of the infamous RED TORII and Dan the Redheaded Amp IP Logged Share: Likes:
