Rachael, Too Hot For This (Read 10295 times)
NothingButTreble
Verified Member
**




Posts: 19
Rachael, Too Hot For This
01/29/19 at 15:45:47

Hopefully with a "catchy" title, some of the experts will give their opinion.

I'm wanting to move Rachael from a happy, unconfined space, to a potentially unhappy confined space.  I need to know if this will be a problem though before I do it.

It would be placed in an entertainment unit, open in the front and partially open in the back, on a shelf which would allow about 7" of open airspace above.  There is a small, 1.5" top panel which does block a bit off.  There is ample side-to-side space of about 9", so it would end up being in about 2.6 cubic feet of airspace around it.

I'm just not sure how hot it would get in a somewhat confined area as this, and of course don't want to experiment and find out.

Also, does it get hot underneath too?  I've never really checked because it didn't matter, but enclosed it might.

One other alternative is a high quality longer power cord, but to me the Pangea cord I could switch to seems to be incredibly heavy and would really place a strain on the connection to the unit.

Thanks for any help.
Back to top


  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #1 - 01/29/19 at 16:43:36

I installed a fan behind my ZMA.  The fan is one of those used in computer applications and is VERY quiet.  I also put a speed control on it.  My ZMA isn't exactly confined but I feel more comfortable with air moving across it.  If you put your Rachael in a cabinet I think a fan would be a necessity.
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
rodcad
Verified Member
**




Posts: 21
Re: Rachael, Too Hot For This
Reply #2 - 01/29/19 at 17:20:54

I read somewhere that if you use a fan, make sure it is pulling hot air off the unit, NOT blowing air on it. Is this the conventional wisdom?
Back to top



Incoming UFO3's or UFO25, (2)Zkit1's, PS Audio Digital Link III, LR laptop, Cornwall's.
  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #3 - 01/29/19 at 17:53:37

I'm not sure I see a difference?  Air flows whether is "pulled" or pushed, yes?
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
rodcad
Verified Member
**




Posts: 21
Re: Rachael, Too Hot For This
Reply #4 - 01/29/19 at 18:08:02

Yes, but what I recall reading is that in a confined space one is better off pulling hot air out, rather than just recirculating it. Since it sounds like this isn't all that confined it may not be a big deal. And again, it's just something I read, may not be true. It was on the internet though!
Back to top



Incoming UFO3's or UFO25, (2)Zkit1's, PS Audio Digital Link III, LR laptop, Cornwall's.
  IP Logged
NothingButTreble
Verified Member
**




Posts: 19
Re: Rachael, Too Hot For This
Reply #5 - 01/29/19 at 21:06:18

Yes, I had thought of a small, and quiet fan but if I could avoid that I'd rather.  In such a large space too, a relatively small fan might not be helping much, as opposed to a computer case where airflow is confined but moving.

Yes, as the Internet says, hot air rises, so if you're pulling air out from above, you're better off than attempting to push air against the natural airflow.

I had also thought of putting a thermometer in the area to see if the temperature went up, but again if I could avoid that I'd rather too.

I don't know if the amp itself has any overheating protection or not.  (To clarify too, if it doesn't I don't see that as a real design flaw, as people should be smart enough not to put it in an insulated box and play it for hours.)


Back to top


  IP Logged
Jeff of Arabica
Seasoned Member
****


Name the greatest of
all inventors...
Accident.

Posts: 968
Re: Rachael, Too Hot For This
Reply #6 - 01/29/19 at 21:14:47

Can you post a picture of your cabinet showing the side and back that you described?
Back to top



Canary Audio Grand Reference Monos//ZMA//Zen Ultra//Taboo MKIII//Waversa DAC3//ModWright Oppo UDP-205// PS Audio P20//Canary Audio MC-10//Van den Hul Colibri "Stradivarius"//FFYX T1803 TT//SonoruS Reel-to-Reel & tube playback preamp//Tannoy Westminster Speakers
  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #7 - 01/30/19 at 00:30:38

Unless the amp sits unconfined allowing natural heat/air convection I still think some mechanical aid might be a good idea.  In the case of the ZMA, depending on bias settings, the transformers can be run pretty hard so I like the idea of moving air across them.  My fan is mounted a few inches behind and blows between output the transformers.

I now understand about pulling vs pushing when considering a closed space.  Although, assuming a makeup-air port, I don't think the air knows which way it's going.  My situation is what I'd call semi-enclosed so I'm just trying to disturb any stagnant air pockets.
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
Colin B
Verified Member
**




Posts: 21
Re: Rachael, Too Hot For This
Reply #8 - 01/30/19 at 01:52:57

The air itself doesn't know which way it's going, but from a transfer perspective it's more efficient to have a passive intake and an active exhaust, than it is to have an active push on the intake. This isn't always the case: in a perfectly sealed system with one intake and one exhaust and no obstructions (say, a pipe) it doesn't matter where the fan goes, but as soon as you start putting things in the way you start want an active draw. Mostly this is because you can be more assured that you're pulling the majority of your waste heat out, as opposed to hoping that overpressure shoves the excess out of the way.

Anyway, when dealing with messy systems (from a fluid standpoint) you generally want your fan on the exhaust since that will guarantee that the waste heat will be drawn away, especially since you don't particularly care where the replacement air comes from as long as it's cooler than your exhaust. The opposite is true with fully open systems, in those cases draw fans don't work at all since you don't have any guarantees that the fan will pull from the place you want, though you're pretty sure where the air will end up. FWIW, this is the reason why desk fans work better when pointed at you (fully open system, directed column of air), and single box fans in windows cool down your house better if you turn them around and have them draw from your house and out your window (mostly closed system, exhaust guarantees waste heat rejection).
Back to top


  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #9 - 01/30/19 at 15:33:42

Great explanation. Thanks!   Cool
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
NothingButTreble
Verified Member
**




Posts: 19
Re: Rachael, Too Hot For This
Reply #10 - 01/30/19 at 15:54:52

Yes, I'll agree!!

Thanks Colin B.

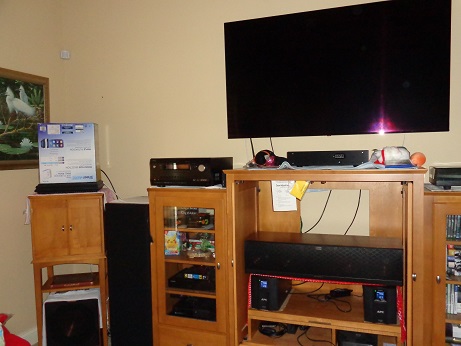

I managed to get a picture to show the situation.  I know it is an outrage, but yes, I keep a large box on top of the amp to keep dust out.

If I do move it to the center cabinet, I'd have it sitting on the center speaker (with padding between of course), and I'm not sure that would be acceptable being so close to a speaker with vibrations?
Back to top


  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #11 - 01/30/19 at 16:03:15

That looks like a "one bag date" with the Rachael.  She's too pretty to cover up!   Grin

That lower position is closer to mine.  I'm sure the Rachael puts off way less heat than the ZMA and I bet you'd be fine -- assuming the doors don't get closed when everything is on.  The vibrations are another matter.  I had to isolate my ZMA from vibrations induced from the very solid counter top that it sits on and I can only imagine how much worse it'd be sitting in contact with a speaker cabinet.  Your isolation will have to be exceptional.
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
NothingButTreble
Verified Member
**




Posts: 19
Re: Rachael, Too Hot For This
Reply #12 - 01/30/19 at 16:47:16

I'm always worried Steve will banish me upon learning what I've done!!  But she's too expensive to get dusty!! Smiley

I am now rethinking the idea, as vibration was a secondary consideration but maybe that ends up being the major obstacle.  I was just thinking that the center speaker wouldn't be a problem, as only the two floor-standing speakers would be used with Rachael.  But, whenever the regular system is on, the center speaker would be on and vibrating, and probably not doing any benefit to the amp.

I don't know if there are any general discussions here about the effects of vibration on these tube amps?

I really would like it though if I could get the amp there in the entertainment unit.  I could possibly attach a couple of brackets to the wall, so it would be a shelf in the entertainment unit that the amp would be resting on, instead of the speaker.  At that point, it seems pretty close to the current situation being so close to the one large floor-standing speaker.

Back to top


  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #13 - 01/30/19 at 17:25:38

I don't think vibration would mechanically hurt the amp but I my case, vibration caused constructive feedback somehow, somewhere, in my ZMA.  As I recall, it was in the lower range.  If the center speaker isn't playing when the Rachael is on, I don't see a problem.

As for dust, many use a narrow paint brush to keep their amps clean.
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
Scott in mich
Verified Member
**




Posts: 33
Re: Rachael, Too Hot For This
Reply #14 - 01/30/19 at 17:54:49

Those look like APC backup power units under the center speaker. Can you swap the APC's with the center speaker?  It looks like the Rachael then could sit in between the APC units.  Then put a shelf in for good measure and you may have enough air above to not need any fans at all.
Back to top



Sota Sapphire, Audiomods, Grado Green/8MZ, Antique Sound USA PP-1, Schiit Modi 2 multi, SE84UFO, Betsy Baffle, DSR IC's, Double Helix+
  IP Logged
Colin B
Verified Member
**




Posts: 21
Re: Rachael, Too Hot For This
Reply #15 - 01/31/19 at 04:33:38

Vibrations can cause microphonic sound (that's mechanical vibrations being converted into electrical signals), though usually that happens when a tube takes an impact (like flicking it) as opposed to low-level systemic vibrations.

As for dust, I wipe down my torii jr every few weeks with a micro fiber cloth. It can get a little fuzzy between the input and output transformers, but cat hair doesn't impact the sound too badly. I'd say to leave it open, let it breathe, and give it a wipe down when it starts bothering you.

Anyway, glad my explanation was helpful!
Back to top


  IP Logged
NothingButTreble
Verified Member
**




Posts: 19
Re: Rachael, Too Hot For This
Reply #16 - 01/31/19 at 14:24:07

Regarding Scott's suggestion, I actually brought the APC units into the cabinet to raise the center speaker, as it was a bit low just resting on the bottom.

I also will probably have to leave the box on Rachael, as cat hair isn't as big a problem as the actual cat, who is known to be curious about anything and everything.  He climbed a 12-foot ladder one time when I was changing some light bulbs, so yes, he can get into interesting dilemmas.

Now here's an update.  I had forgotten how heavy Rachael really is, so setting the amp directly on the speaker won't be good in my opinion.  So I'm left with either putting in a shelf to hold the amp, or doing something completely different, or just leaving things as they are.
Back to top


  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Rachael, Too Hot For This
Reply #17 - 01/31/19 at 16:46:49

Another thought regarding dust is to use a dust cover when not in use.  I put pillowcases over my HR1s and a large cloth over my amps and TT when I'm not using them.

I have 2 cats but I've trained them (more or less   Tongue) not to go certain places.  I place set mouse traps where they poach.  They get the idea pretty quickly.  They just get startled when they upset a trap -- I'm not torturing them!   Wink
