My Clone version of the Se84C-S (Read 19826 times)
Real
Verified Member
**




Posts: 32
My Clone version of the Se84C-S
05/24/14 at 21:57:54

Just finish my second Zen Amp.
My first was the ZKIT-1 Great sounding little amp.
This one is point to point using online schematic and videos
I think this one already sound better and I'm only using my
Boston Acoustic Speakers Tomorrow I will need to try it with
my Cornwall.

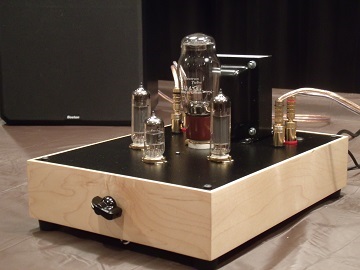

Here is a picture of my beak in set up.

Real
Back to top


  IP Logged
Doorman
Seasoned Member
****


"pouring from
the empty into the
void"

Posts: 450
Re: My Clone version of the Se84C-S
Reply #1 - 05/24/14 at 22:16:57

Well done, should make a pair of Cornwalls happy !
Back to top



Decware, Rega, Heybrook/Linn/Ortofon
Goertz/Wireworld/cat-5/MarkAudio Alpair 10.2 drivers
(eN) in DIY Mar-Ken cabs
NHT SB3’s
  IP Logged
Real
Verified Member
**




Posts: 32
Re: My Clone version of the Se84C-S
Reply #2 - 05/25/14 at 16:17:01

Here is a close up.
Sounds better by the hour.
Back to top


  IP Logged
JD
Seasoned Member
****




Posts: 533
Re: My Clone version of the Se84C-S
Reply #3 - 05/25/14 at 17:57:47

nice work.

JD
Back to top


  IP Logged
Core32
Seasoned Member
****




Posts: 1858
Re: My Clone version of the Se84C-S
Reply #4 - 11/07/14 at 00:11:02

Were these "online schematic and videos" part of a package? Or do you have a link?
Very nice work by the way.
I can solder pretty well but have a hard time drilling a round hole.  :P
Back to top


  IP Logged
Lonely Raven
Seasoned Member
****


Jack of all Trades,
Master of None

Posts: 3567
Re: My Clone version of the Se84C-S
Reply #5 - 11/07/14 at 01:08:55


Very nice lookin'!

Someday I'll get off my arse and build a twin to the one I bought from Steve in '98.
Back to top


WWW Lonely Raven   IP Logged
Real
Verified Member
**




Posts: 32
Re: My Clone version of the Se84C-S
Reply #6 - 11/07/14 at 11:43:20

Thank You,
I just used the schematic and videos online.
I read most of Steve paper's online and use that as a guide line.
I order parts from different venders online upgrading the original
parts from the Z KIT list.
I must say that the first one I built was the Zen Kit with the board.
That helped me understand how most of it worked.
It does sound better than it looks and I am very please with it.

To drill a round hole I used hole saws a little more expensive than the cone bit but it does a good job.
Built yourself one you wont regret it and you will have much fun
building it.

Real
Back to top


  IP Logged
Core32
Seasoned Member
****




Posts: 1858
Re: My Clone version of the Se84C-S
Reply #7 - 11/07/14 at 19:07:51

Real,
I see the schematics online here at Decware, but I do not see any videos.
I'm probably overlooking them. Can you give me a link please?
Thanks!
Back to top


  IP Logged
Real
Verified Member
**




Posts: 32
Re: My Clone version of the Se84C-S
Reply #8 - 11/07/14 at 23:42:30

http://www.youtube.com/playlist?list=PL839EFF2CBD2672F7
Google Decware Zen Tube amp on u tube
you should be able to find the videos.

Real
Back to top


  IP Logged
hdrider
Seasoned Member
****


On the path with
Decware.

Posts: 693
Re: My Clone version of the Se84C-S
Reply #9 - 11/08/14 at 14:57:28

Good looking amp, it will get better sounding the longer you run it. I have a SE84CS that I built as a kit from Steve in the mid 2000 that I still use. Just had it on line for about 6 weeks while I waited for my Rachael amp and ZP3. I had Zygi make a custom base for mine which should arrive next week. Enjoy and let us know how it sounds on the Cornwalls. Happy listening, Chris.
Back to top



CSP3, Rachael, ZP3, ZMC 1, Sony ES Bluray, Schitt Bitfrost DAC,Sota Star TT w/ FR-64, Hana SL Low Output Moving coil, Omega 7XRS Mk 2 walnut, DeepOmega 8 sub, Morrow Audio PH3 and MA3 IC's, Gamma Electrostatic phones.
  IP Logged
Real
Verified Member
**




Posts: 32
Re: My Clone version of the Se84C-S
Reply #10 - 11/09/14 at 00:39:09

It sounds fantastic on the Cornwalls.
I wish I could find a good schematic of the latest Rachael
amp. I would love to try to clone one for myself.
I know that my clone can't sound as good as Steve,
however I really like the sound from my Se84C-S Clone.
I just wonder how good I could make the Rachael sound.
Ho Well.

Real
Back to top


  IP Logged
zeke
Verified Member
**




Posts: 12
Re: My Clone version of the Se84C-S
Reply #11 - 03/12/17 at 21:15:57

Great build......so my big question is.....

I see you are using a tube based power supply so did you use the same Power transformer as spec'd in the solid state version?

Also, wondering if you incorporated the CCE Mod. I used it on an existing SE84 and it made a nice difference.....recommended.

Just asking because I have an itch to do a point to point build....love the smell of solder and rosin.

Wink
Back to top


  IP Logged
Alvaro Oliver
Verified Member
**




Posts: 13
Re: My Clone version of the Se84C-S
Reply #12 - 07/31/17 at 20:18:25

I would also like to know if it is the same Zkit transformer. I suspect not.
Back to top


  IP Logged
Lonely Raven
Seasoned Member
****


Jack of all Trades,
Master of None

Posts: 3567
Re: My Clone version of the Se84C-S
Reply #13 - 08/01/17 at 15:40:30


It looks like he built it more along the lines of a regular Zen amp rather than like the kits.
Back to top


WWW Lonely Raven   IP Logged
galtjunk
Verified Member
**




Posts: 13
Re: My Clone version of the Se84C-S
Reply #14 - 01/20/22 at 12:25:27

I built one from the same schematic and videos.
Edcor does have a transformer with the same specs and 5 volt taps for the rectifier tube.
I did add the CCE mod.
I use it in my office with a pair of Tiny Radials.
It sounds wonderful.
Back to top


  IP Logged
JBzen
Seasoned Member
****




Posts: 1344
Re: My Clone version of the Se84C-S
Reply #15 - 01/21/22 at 10:50:04

Galtjunk,

Would you happen to have the part number for the Edcor transformer.

I always wanted to build a point to point Decware amp but missed the opportunity when Steve offered it. Also, I already built the ZKIT1 and it sounds great.

John
Back to top



AMC CD8b>XO3>Cambridge CXN2>ZDAC>ZBOX>braided silver/occ> Zrock2>CSP2+>SE84 milflex copper 25th>9AWG silver/copper braid>lii Crystal 10 in Huijgen cabinets. Ortofon 2M Black>JVC QL-F4/Otari MX5050B2>ZP3. Isolation. AC filtering. Room treatment.
  IP Logged
galtjunk
Verified Member
**




Posts: 13
Re: My Clone version of the Se84C-S
Reply #16 - 01/21/22 at 11:35:50

Xpwr008
Back to top


  IP Logged
