Finished WO32
11/18/11 at 03:37:11

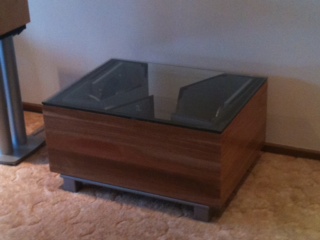

Its Finished!

I have clad the WO32 in aussie oak on 5 sides and put glass on the remaining side. My WO32 can be set with the glass or the aussie oak facing up. To connect the amp there are 2 recessed female banana plugs on the glass and timber side. The WO32 rests on a 75mm high stand.

The WO32 sounds amazing for music. I can't pick the point the sub cuts in. It sounds as if the front book self speakers are producing all the sound.

The only bass the WO32 doesn't reproduce well are explosions when watching movies. Tends to sound "slappy" but I knew that was the case before building it.

Cheers Andrew
Back to top

  IP Logged
Share: X Facebook LinkedIn Email WhatsApp Instagram Likes:
biggles
Ex Member
Re: Finished WO32
Reply #1 - 11/18/11 at 03:38:50

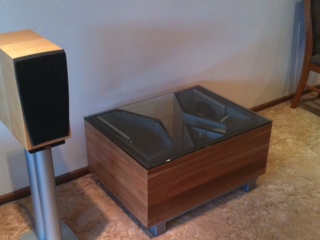

Another photo
Back to top

  IP Logged
Share: X Facebook LinkedIn Email WhatsApp Instagram Likes:
HT-EXT
Seasoned Member
****
Offline

NYUK NYUK NYUK

Posts: 274
x0|Mayberry RFD|USA||0|0|NC,North_Carolina
Re: Finished WO32
Reply #2 - 11/29/11 at 13:32:33
NICE !!! Very nice !!!


What drivers did you use and how do you keep the glass from resonating?


HT-EXT
Back to top


" I TRY TO THINK BUT NUT'EN HAPPENS! " CURLY
  IP Logged
Share: X Facebook LinkedIn Email WhatsApp Instagram Likes:
biggles
Ex Member
Re: Finished WO32
Reply #3 - 12/06/11 at 01:05:48
Gday HT-EXT

The drivers used are - Vifa PL26WR09-08

The box itself is heavy as it is built from 18mm MDF with 12mm of Aussie Oak glued on after the MDF box was finished. Glass is 10mm hardened/toughened. It is attached using 20mm wide double sided glass tape. I can place a wine glass on the box while its working hard with no signs of movement in the liquid in the glass. Cross over is set at approx 60hz.
Back to top


  IP Logged
Share: X Facebook LinkedIn Email WhatsApp Instagram Likes:
Mattb
Ex Member
Re: Finished WO32
Reply #4 - 01/15/12 at 20:23:35
Could I ask why the horn is facing the wall?.
Back to top


  IP Logged
Share: X Facebook LinkedIn Email WhatsApp Instagram Likes:
deucekazoo
Seasoned Member
****
Offline



Posts: 461
x0|East Peoria|USA||0|0|IL,Illinois
Re: Finished WO32
Reply #5 - 01/19/12 at 13:58:48
Very nice! This gives me inspiration to get mine done. Thanks for that.

John
Back to top


  IP Logged
Share: X Facebook LinkedIn Email WhatsApp Instagram Likes:
Jung
Ex Member
Re: Finished WO32
Reply #6 - 06/26/12 at 01:02:23
Looks sweet! How does it sound? Did it meet your expectation?
