Another nice build! (Read 713 times)

Steve Deckert

Administrator

If the 1st watt
sucks why continue?

Posts: 6246

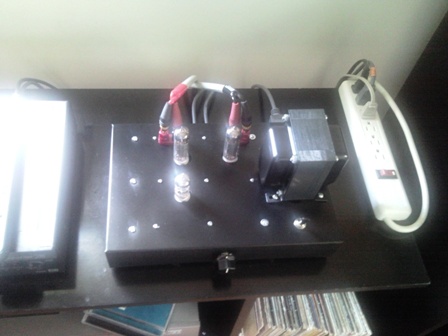

Another nice build!
07/15/09 at 17:37:43

Quote:

Steve,

Amp sounds great! Thank you very much for your helpful suggestions and diagnostic repair. I also have a question about the Christmas upgrade/addition to my amplifier kit. How would I go about ordering that and what is included in that?

Thanks,
Jerry

Jerry,

The CCE mod requires you to modify the circuit board by cutting the trace between pins 3 and pins 6. Then you can install a 0.1uf 400 volt poly cap between the two pins.

Steve

IP Logged

Alan H Ex Member	Re: Another nice build! Reply #1 - 07/15/09 at 23:26:48 Hmmm - I installed the Christmas mod capacitors, but didn't cut any traces. Pins 3 and 6 do not look connected on the schematic, nor on the graphic of the board in the assembly instructions. (I presumed that the NC beside pin 6 meant not connected). Steve, is it the traces between pins 3 and 8 which need to be cut?
Back to top	IP Logged

Steve Deckert Administrator If the 1st watt sucks why continue? Posts: 6246	Re: Another nice build! Reply #2 - 07/16/09 at 13:21:24 Some of the early boards did not have 3 and 6 connected, the later ones did.
Back to top	IP Logged

Alan H Ex Member	Re: Another nice build! Reply #3 - 07/16/09 at 17:01:51 Ta. I must have an early board - looking at my photographs, no traces on either side attached to pin 6. Any other differences with the early boards? NB I was wrong - it is a later board, and pins 3 and 6 are connected beneath the tube holders.
Back to top	IP Logged

Steve Deckert Administrator If the 1st watt sucks why continue? Posts: 6246	Re: Another nice build! Reply #4 - 07/16/09 at 23:49:05 The early boards had a full shield that proved to be have a greater potential to cause noise problems than it did to prevent noise problems so it has been eliminated from the current production. Steve
Back to top	IP Logged

Alan H Ex Member	Re: Another nice build! Reply #5 - 07/17/09 at 00:41:46 EDITED Steve - turns out I have a later board (rev 7 2009). Now I know where I stand. Thanks.
Back to top	IP Logged
