Help deciding what amp to purchase (Read 4633 times)
DVDMike
Verified Member
**




Posts: 31
Help deciding what amp to purchase
01/04/20 at 01:08:00

I have circa 1990 Klipschorns with AK3 crossovers.  I am currently running them off an adcom 555II.  I’ve got more than enough power.  But I’d like to try tubes.  Everyone who has klipschorns says they never sounded better that when they are connected via tube based amp.

What I’d like to do is bi-amp the klipschorns and use the tube amp to power the upper end, mid and high.  I’m really not sure how much power I need from the tube amp.

I was looking at the MODEL SE34I.5  Is this enough power to run both left and right channels to reference levels?  Or would another amp be more appropriate with my speakers?

I like that you can add a pass through preamp signal through where I could feed the amp running the bass pins.  If you add this, does it come with a dedicated signal/volume limiter so I can independently control output of the 2 stereo amps?  If it doesn’t, it’s really useless for me to buy the extra output option and I’ll have to split the signal before going to the se341 or whatever tube amp I get.

There are some additional up charge options listed.  I’m not really sure I understand all of them to know if I need them or not.  (I understand the cosmetic ones).
Back to top


  IP Logged
busterfree
Seasoned Member
****




Posts: 430
Re: Help deciding what amp to purchase
Reply #1 - 01/04/20 at 03:22:41

IMO the SE34I.5 is plenty powerful enough for Klipshorns. What preamp are you using with the Adcom 555II? You may like the SE34I.5 alone or with your preamp. How big is your room?

The Adcom 555II has gain of 27 dB, and Input Sensitivity of 1.75V for 200 W into 8 Ω. The SE34I.5 needs 2.5V for full output.

I want to try a Decware Ultra for bi-amping, but I don’t have one.   Smiley
Back to top


  IP Logged
busterfree
Seasoned Member
****




Posts: 430
Re: Help deciding what amp to purchase
Reply #2 - 01/04/20 at 03:23:57

Welcome to the forum!
Back to top


  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #3 - 01/04/20 at 14:49:31

Buster, thanks for your input.  Can I test the output voltage of my preamp out ports with a voltage meter?
Back to top


  IP Logged
busterfree
Seasoned Member
****




Posts: 430
Re: Help deciding what amp to purchase
Reply #4 - 01/04/20 at 14:52:46

Quote:
Can I test the output voltage of my preamp out ports with a voltage meter?


I don’t know. Hopefully, others will chime in.
Back to top


  IP Logged
Donnie
Seasoned Member
****


Why does it hurt
when I pee?

Posts: 2190
Re: Help deciding what amp to purchase
Reply #5 - 01/04/20 at 15:12:28

I'd just look up the specs of the preamp.
Back to top



Owner of the infamous RED TORII and Dan the Redheaded Amp
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #6 - 01/04/20 at 15:12:38

Back to top


  IP Logged
hdrider
Seasoned Member
****


On the path with
Decware.

Posts: 693
Re: Help deciding what amp to purchase
Reply #7 - 01/04/20 at 16:06:44

Welcome Mike- I would put a call into Steve, it may take while to connect but worth his advice. I played with bi-amp and even tri-amped for years, always sounded good but it wasn't until I pitched it all (except sources) and got our Decware/Omega rig that everything sounded organic and right. If that makes any sense. I would love to hear my Rachel driving some big Klipsch speakers someday. Please keep us posted on your findings and progress. This is a great bunch of Decfans here with a LOT of knowledge and opinions and a fantastic sense of humor. Happy listening, Chris.
Back to top



CSP3, Rachael, ZP3, ZMC 1, Sony ES Bluray, Schitt Bitfrost DAC,Sota Star TT w/ FR-64, Hana SL Low Output Moving coil, Omega 7XRS Mk 2 walnut, DeepOmega 8 sub, Morrow Audio PH3 and MA3 IC's, Gamma Electrostatic phones.
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #8 - 01/04/20 at 17:30:48

Thanks Chris!
Back to top


  IP Logged
Johnecake
Verified Member
**




Posts: 3
Re: Help deciding what amp to purchase
Reply #9 - 01/09/20 at 03:15:54

Hey Mike  I have 74 khorns and they were special but hard to tame. Horns do love tubes and the Decware makes them sing. I picked the Rachel 4 years ago because Paul Klipsch once said  What the world needs is a good 5 watt amp. Pick the Rachel or 1 or 2 Zens and you will be set. I have a sub cause I had one but honestly you don’t need it, somehow those little watts drive those woofers just fine and the midrange and top is just plain sweet , the edginess is gone and the liveness pops. Khorns were made for SET amps. I also run a preamp it’s much improved in clarity and balance for me. It’s easily the best sound I ever had in all the gear I vw had thru here.Do it you will love it and the horns will thank you.
Back to top


  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #10 - 01/09/20 at 12:39:56

John, thanks for weighing in.  I don’t see the “Rachel” listed on the web site. Does this model go my a different name now?
Back to top


  IP Logged
Lon
Seasoned Member
****


"Love without
guts is
worthless!"
Philip K. Dick

Posts: 23308
Re: Help deciding what amp to purchase
Reply #11 - 01/09/20 at 13:50:47

Back to top



HR-1,ZTPRE,ZBIT,ZROCK2,SEWE300B,CSP3-25mod,Taboo MkIV;Rega RP3 all GrooveTracer mods;PSAudio:PST+DSD,P15,NPC,PowerBases,AC-12 pwr cbls,Reference spkrcbls;Mapleshade SamsonV3;VooDoo:Cremona+Amati interconnects, IsoPods; headphones:Sennheiser HD800S,ZMF Ori,Oppo PM1
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #12 - 01/09/20 at 14:28:32

Got it, Rachel is the MODEL SE34I.5 I was thinking.  Thanks.
Back to top


  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #13 - 01/09/20 at 15:00:46

I ordered my “Rachel”. One question I have is about startup.  I’ve never owned a tube amp.  With most modern solid state amps, there is a delay circuit that prevents a thump going through your speakers.

Is there any noise / distortion that is sent to speakers during the power up time?

Also, I’m used to using a “trigger” cable.  I’m pretty sure this amp doesn’t have one of these to power up instead of using the power switch.  But is there any harm in leaving the power switch on and remotely switching the ac power outlet on and off?  Or must you manually use the switch on the unit?

Are the tubes use available for purchase outside of decware or are they proprietary?
Back to top


  IP Logged
4krow
Seasoned Member
****


IMAGINE WHIRLLED
PEAS

Posts: 1606
Re: Help deciding what amp to purchase
Reply #14 - 01/09/20 at 16:49:45

Since I have owned a Rachel for years (but no more), I can answer these questions for you. First off, tube equipment is not instant on after turn on, unless there is a pre warm up circuit . The Rachel does not have this. Point being the tubes must warm up for awhile before any signal can pass, therefore there is no turn on thump to be had. Neither does it have a turn off thump.
It does not have a signal turn on, but can safely be turned on remotely by a device used to turn on audio equipment in sections, such as pre amp, amp Cd player etc.
Tubes can be bought just about anywhere, with the buyer beware clause intact. There are many different types, substitutes, and even processes in manufacturing. It can go down the rabbit hole, but that is your choice.
Back to top



Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.
  IP Logged
4krow
Seasoned Member
****


IMAGINE WHIRLLED
PEAS

Posts: 1606
Re: Help deciding what amp to purchase
Reply #15 - 01/09/20 at 17:00:08

I want to add that the K horns are over 100db sensitive, point being they will be totally loud enough with 1 watt of input! The Rachel will do quite well by itself, and I see no reason whatsoever to biamp with this sort of speaker sensitivity. For reasons of better quality you might have some sort of argument, but as far as power needs, the point is moot.
In high school, I made set of folded horns of the Klipsch design, and never forgot what 1 watt of bass could sound like. No one could understand why I was making a horn with the driver hidden inside the box. A demonstration baffled them further. 'How can that be?' they wondered.
Back to top



Decware 34I.3 integrated amp/Forte' 3 bass amp/Velodyne SMS-1 bass mngmnt system/Decware ZOB speakers/Audio Nirvana 8" bass drivers/Xiang Seng DAC/ LR Audio Computer/Rega Apollo R CDP/Emotiva ERC3 CDP/BPT 3.0 power cond.
  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Help deciding what amp to purchase
Reply #16 - 01/09/20 at 17:02:34

In general you might get some soft thumping or other odd sounds during the turn on and turn off.  Steve recommends that volume be kept off for both cycles.  I've never had anything "scary" with my various components though.
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #17 - 01/09/20 at 18:42:14

Thanks guys for the additional information.  I plan on testing the Rachel (is this a “friends reference?) without biamping first.  If there is no need for biamping, great!

One follow up to the startup suggestion about turning the volume down.  Can you simply turn your volume down for the preamp feeding the Rachel?  Or do you have to use the knobs on her to do this?
Back to top


  IP Logged
Archie
Seasoned Member
****




Posts: 2731
Re: Help deciding what amp to purchase
Reply #18 - 01/09/20 at 19:03:17

I just turn down my amp and leave the pre alone.  I think the amp is most important since it drives the speakers.
Back to top



ZLC
Technics 1200G TT w/ Ortofon Jubilee MC cart
ZMC1
ZP3 (25th A Mods)
ZR2 (25th A Mods)
CSP3 (25th A mods)
ZMA (25th A mods)
Homemade Big Betsy Speakers (F15s)
Silver Cabling
DIY Isolation platforms under amps & TT.
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #19 - 01/09/20 at 21:37:44

Yikes!  From what I just saw on the website, there are orders backed up going as far back as early October!  I’m not even on the list but there are over 100 units ahead of me.  I figured I might have to wait for a week or so to get my options.  I missed the part about it taking 3 or more months.  S there only one person there who does all of the assembly?
Back to top


  IP Logged
Geno
Seasoned Member
****


Without music, life
would be a mistake.

Posts: 1988
Re: Help deciding what amp to purchase
Reply #20 - 01/09/20 at 22:56:27

There is one for sale here in the classifieds. Grab it and save some money on an already seasoned amp.
Back to top



(2)SE84UFO(Balanced Monoblocs) OR Sansui AU-222
Crown sub amp
Cambridge Audio CXN(ModWright) • ZBIT
SL-1210MK5(KAB Mods) Soundsmith Aida MKll cart • Darlington Labs MP-7
Otari MX5050-Bll2 R2R
ZLC Power Cond.
Lii Audio PT-10/W-15 in open baffles
  IP Logged
Johnecake
Verified Member
**




Posts: 3
Re: Help deciding what amp to purchase
Reply #21 - 01/10/20 at 03:28:45

Mike congrats on getting into tubes. It’s a whole different restaurant your eating at now. Night and day difference. These amps are hand built to order by artesian craftsman you HAVE to wait for something this nice to be built.I’m waiting on a new preamp myself. Take the time to read all the stuff you can about tube swapping and breakin while u are waiting. Any chance you live in mid NY ur welcome to come see mine.
Back to top


  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #22 - 01/10/20 at 04:36:06

I’m in Atlanta but grew up in central NY.  No plans to visit any time soon though.
Back to top


  IP Logged
hdrider
Seasoned Member
****


On the path with
Decware.

Posts: 693
Re: Help deciding what amp to purchase
Reply #23 - 01/11/20 at 15:36:25

Mike - If you can find a used Rachel with the options you want, think about buying it (don't take too long though) and you can send it to Steve and have it checked out giving you the life time warranty. I did that on my CSP-3. You can have him do some upgrades also, depending on what you buy. Yes, a long wait for new gear but always worth it. Buy the time you forgot that you have gear being made, you start getting notices about what stage it's in. Then it's in your listening room. I bet you will pass on the whole bi-amp idea keeping things as pure as possible. Happy listening, Chris.
Back to top



CSP3, Rachael, ZP3, ZMC 1, Sony ES Bluray, Schitt Bitfrost DAC,Sota Star TT w/ FR-64, Hana SL Low Output Moving coil, Omega 7XRS Mk 2 walnut, DeepOmega 8 sub, Morrow Audio PH3 and MA3 IC's, Gamma Electrostatic phones.
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #24 - 01/13/20 at 22:19:24

Well, I’m finally on the scoreboard. And my card was charged 10% of the total cost. So perhaps my delivery would be from mid March to Mid April I guess.

Back to top


  IP Logged
mperdue63
Seasoned Member
****




Posts: 136
Re: Help deciding what amp to purchase
Reply #25 - 01/13/20 at 23:30:26

It will be worth the wait!
Congrats
Back to top



LHY SW10}HiFi Rose 130RS}Holo Audio May KTE}Decware Sarah #003}Spatial Audio X5's
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #26 - 04/07/20 at 21:22:51

I’m now in the “quality control” stage.  What is done in QC that isn’t done in “testing”?  Seems like QC can take some time based on what I’ve been seeing with other people’s units.

And once it gets to “packed” status it can be a few days even to get shipped out.

I’m still looking forward to receiving my unit.  I’m just getting antsy, especially after being locked down at home.

I hope everyone is safe!
Back to top


  IP Logged
HockessinKid
Seasoned Member
****




Posts: 1084
Re: Help deciding what amp to purchase
Reply #27 - 04/07/20 at 21:48:47

You can always call Sarah for an estimate on shipping date.

HK
Back to top



Nottingham Interspace TT w/ Audio Technica AT-OC9XML cart + Modwright PH 9.0XT phono OR Modwright modded Cambridge CNX V2 > CSP3-25th Ann. preamp > ZMA-25th Ann. amp > PI Audio UberBUSS > Caintuck Audio Lii15 Magnum speakers > Snake River Audio & ZenWave cables
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #28 - 04/07/20 at 22:02:42

Oh, okay thanks.
Back to top


  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #29 - 04/15/20 at 20:44:35

My amp is finally shipping out today UPS ground.  So probably won’t be in my hands until sometime next week.

Meanwhile, I’m in the process of resurfacing a pair of speakers (not the ones I’ll be using with this amp).

Can’t wait for my new amp!
Back to top


  IP Logged
Lon
Seasoned Member
****


"Love without
guts is
worthless!"
Philip K. Dick

Posts: 23308
Re: Help deciding what amp to purchase
Reply #30 - 04/15/20 at 21:58:23

Congrats! The long wait is almost over!
Back to top



HR-1,ZTPRE,ZBIT,ZROCK2,SEWE300B,CSP3-25mod,Taboo MkIV;Rega RP3 all GrooveTracer mods;PSAudio:PST+DSD,P15,NPC,PowerBases,AC-12 pwr cbls,Reference spkrcbls;Mapleshade SamsonV3;VooDoo:Cremona+Amati interconnects, IsoPods; headphones:Sennheiser HD800S,ZMF Ori,Oppo PM1
  IP Logged
Steve Deckert
Administrator
*****


If the 1st watt
sucks why continue?

Posts: 6234
Re: Help deciding what amp to purchase
Reply #31 - 04/16/20 at 05:40:09


I suspect a lot of people wonder wonder what the difference is between QC and testing...

Testing is basically just seeing if it works after assembly. Voltages are tested and the unit is hooked up and listened to throughout the day while other stuff is being built.

You can see a video of this being done here: https://fast.wistia.net/embed/playlists/eogduvonh0?media_0_0%5BautoPlay%5D=true&...

QC consists of a lot of things. First it is visually inspected for scratches, crooked components, loose parts, the right parts, the right configuration, and then if it passes that it is checked to see if it specs out. This pretty much ensures that it is wired correctly. During this process tubes are selected for the amp and tested in the amp, until identical matched sets are achieved in both output but also in distortion signatures. The amplifier often spends several hours being cycled on and off during this process and if nothing needs to be changed a final inspection of the solder joints is done by probing each joint while it is one and watching the scope for any fluctuations. At the same time each joint is visually inspected to be sure it is a wet solder joint with a good shine on it that has penetrated the metal. Some are of course hard to see, so an endoscope is used that can reveal cracks or similar issues you can't see with the naked eye.

You can see a small part of this process, checking distortion and channel balance in the video here: https://fast.wistia.net/embed/playlists/1rcffizxtc?media_0_0%5BautoPlay%5D=true&...

If the unit gives a solid performance at the QC bench it is then listened to on a planar stereo test rig because as good as my QC equipment is, after 20 years I have learned that just because something tests perfect doesn't mean it is. The source is a battery operated iPod with 12 tracks on it that I've listened to on every component we make so it has become a great reference due to it's consistency. This set up duplicates the soundstage I would get in the listening room but in miniature right at the bench so I can immediately hear if it doesn't image right or have adequate soundstage depth.

On Anniversary gear and or mods, I usually will put it in the listening room and actually use it for a day or an evening or two just to log more hours on those tubes to catch any last minute misbehavers.

Back to top


WWW   IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #32 - 04/17/20 at 20:42:06

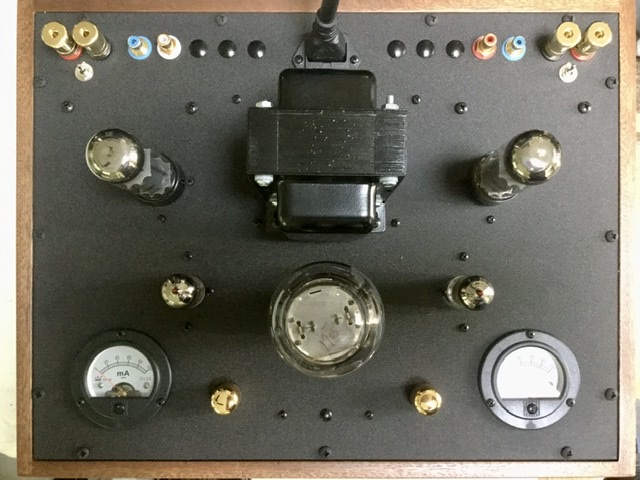

My amp arrived today.  Pretty good for ups ground!  Very well packed.

I need to go back and find / review the manual to make sure I know what’s what.

Back to top


  IP Logged
GroovySauce
Seasoned Member
****




Posts: 784
Re: Help deciding what amp to purchase
Reply #33 - 04/17/20 at 21:45:34

Congrats that’s exciting! Report back and let us know your experience.
Back to top



Maximus NEO TT|ViV Rigid Float TA | Phasemation PP-200 or Hana ML | Sutherland Little Loco MK2 | Innuos ZENith MK3 | LampizatOr GA TRP | EMIA Remote Autoformer | Add-Powr Sorcer x4 | Snake River Audio Cables | PAP Quintet 15 1.6 Voxativ |Torus AVR15|AF Treatment
  IP Logged
DVDMike
Verified Member
**




Posts: 31
Re: Help deciding what amp to purchase
Reply #34 - 04/18/20 at 00:30:49

Hooked it up to khorns.  Turned off sub and used a 24/96 stereo disk for testing.

I noticed a lack of bass.  In changing the the balance I figured out the problem was in left channel.  Had to physically move the left KH to get behind it.  Took out the bass fuse, it was blown!.  I can’t say for certain it wasn’t blown before I started the testing, especially since the big sub is over there.

Anyway, it went back to sounding better after replacing the klipschhorn bass fuse.

Here’s my initial observation. 6WPS really is pretty darn loud with a tube amp & a klipschhorn.  A was quite skeptical about 6wpc.  But I’ve never owned tube anything before.  But as loud as it gets,  it’s just not quite loud enough for me.  I’m getting into some mild clipping when I turn it up to my maximum listening volume.

My plan was, and still is now, is to by-amp the KHorns.  My old amp, adcom 555II (250wpc) was was loud enough before clipping. ( In fact, I’d never heard it clip.) So my plan is to run the bass of the khorns off of the adcom and the mid/highs off the tube amp. But with the adcom the KH’s sounded a bit harsh, especially at higher volumes. I never thought it sounded harsh when I was using for my 76 Cornwalls though.

The decware (Rachel) has a variable? pre out to feed the adcom.  And of course the khorns have two speaker level inputs, bass and upper.  (Well, not exactly “inputs”.) The only thing I need to add is some sort of inline fuse to the upper frequency feed to its crossover to replicate the functionality of the speaker.

I will say that when played loud, the decware isn’t as harsh on the upper end as the adcom.  So this is encouraging post bi-amp.

I’m not sure if I didn’t understand something when I ordered Rachel, but I don’t see where i can adjust the volume of the pass through that I planned to send to the adcom to power the bass.  It it an option?  If so, I must have got it wrong and thought the 2 volume controls I selected were for the pass through not the bass.  So this might present a problem for me because without another piece of equipment I won’t have a way to balance my bass and high frequencies.

Back to top


  IP Logged
GroovySauce
Seasoned Member
****




Posts: 784
Re: Help deciding what amp to purchase
Reply #35 - 04/21/20 at 12:38:14

Do you have a SPL meter to check the levels?

I'm not familiar with the amp so I don't know about the pass through and if it has a variable output.

Sounds like you will need to get some sort of attenuator / passive preamp so you can adjust the levels of the Adcom amp.

What are you using as a preamp?

Back to top



Maximus NEO TT|ViV Rigid Float TA | Phasemation PP-200 or Hana ML | Sutherland Little Loco MK2 | Innuos ZENith MK3 | LampizatOr GA TRP | EMIA Remote Autoformer | Add-Powr Sorcer x4 | Snake River Audio Cables | PAP Quintet 15 1.6 Voxativ |Torus AVR15|AF Treatment
  IP Logged
bloodlemons
Verified Member
**




Posts: 47
Re: Help deciding what amp to purchase
Reply #36 - 04/27/20 at 02:33:59

I believe the two volume controls are for Right and Left channels.
Back to top


  IP Logged
s3steve
Senior Member
***




Posts: 55
Re: Help deciding what amp to purchase
Reply #37 - 05/25/20 at 18:51:48

There is an option for Variable RCA Outputs.

I think you needed to check that box.

I'm running Altec 605B's and felt they weren't as loud as I had hoped.
Coming from Klipsch Chours I and modified Dynaco MkIII putting out 60 wpc.

I ended up buying a CSP3 preamp. That helped but I still feel it may not be enough. I was thinking of Biamping but I have a Markwarts crossover that I'll be hooking up this week and I'll see how that changes things.
Back to top



CSP3-25
SE34I.5
Ariston RD11
PS Audio GCPH with the Underwood upgrade
Bluesound Node N130
Altec 605B's in a 620 Cabinet / JBL 2402 / Markwart 605B Time Aligned Crossover
Omega Super 3 XRS
  IP Logged
Pages: 1
Send Topic Print
