Another question about tubes? (Read 1838 times)
Radarek
Senior Member
***




Posts: 75
Another question about tubes?
12/25/19 at 01:56:08

Hi All

Merry Christmas to every one. Have a playful holiday season.

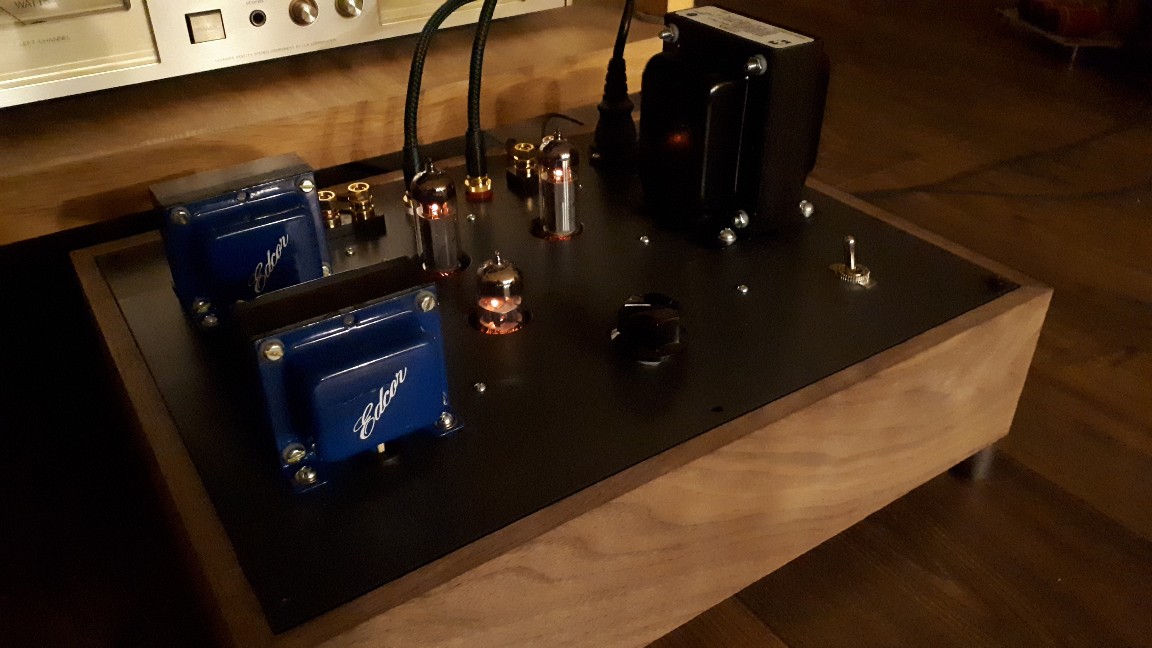

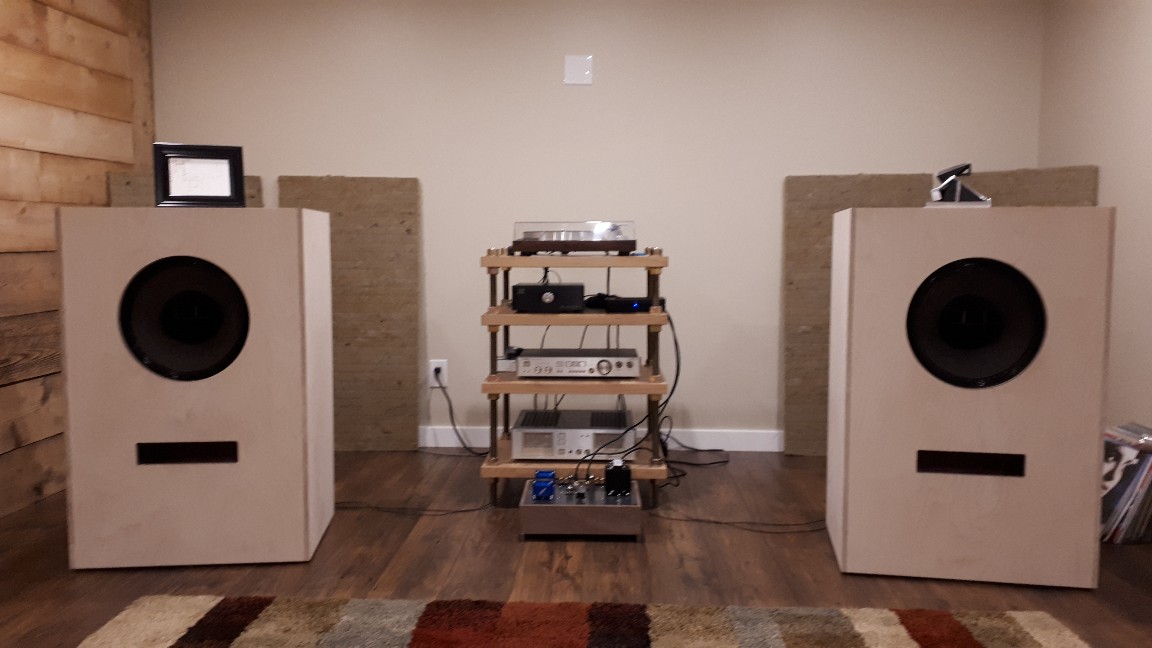

Just in time I have my amp project up and singing... what a gem. Very promising, it will take me few days of congratulations to myself on mission almost accomplished... lol. Still some touches to do. Question is?

How hot the tube can get?

Driver around 65 Celsius
Output tubes around 150 Celsius left 130 Celsius right.
Power trafo 30 Celsius

Those values were measured with laser hot gun so they should be quite accurate.

Didn't measure all the points for V values as my meter is a basic one. Needs something better. C was 0.2v off. D points were right one 2.45v and left 3.1v. That one is in the allowed brackets but will try to investigate it more. Still need to measure A and B points yet.

That one 1K resistor (5w) is hot, will change it to 50w after xmas. Lets play now...
Back to top


  IP Logged
Radarek
Senior Member
***




Posts: 75
Re: Another question about tubes?
Reply #1 - 12/25/19 at 01:57:25

Driving two fridges...
Back to top


  IP Logged
Radarek
Senior Member
***




Posts: 75
Re: Another question about tubes?
Reply #2 - 12/27/19 at 04:32:52

Question to Steve...

If you can check schematic for Zkit1 L/blue and R/ blue... are those shouldn't be reversed? ... maybe I'm wrong but when left IN has signal right speaker plays and....


Thx
Back to top


  IP Logged
