Potentiometers of Torii MK3 and CSP2+ (Read 4281 times)
EdGuY
Seasoned Member
****


Fact is just a solid
opinion.

Posts: 133
Potentiometers of Torii MK3 and CSP2+
09/10/17 at 10:05:51

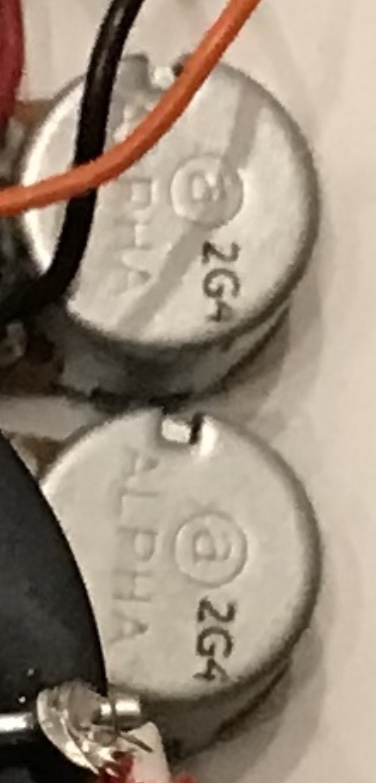

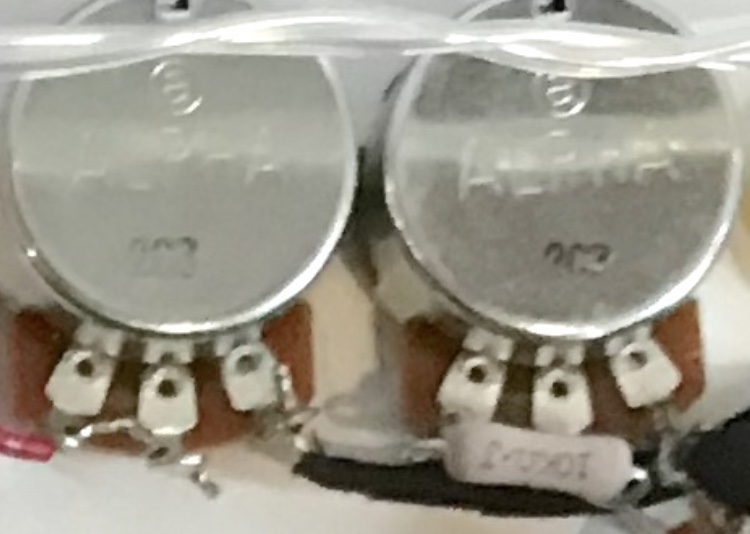

is there any idea what these potentiometers are? 2C3 (from Torii 3, bass/treble) and 2G4 (from CSP2+, gain adjustment)? Want to replace them but can’t find any data.

Ohmic law type A or B?

2C3=B50K?
Back to top



Tannoy Prestige Canterbury GR,ST-300mg,IsoTek Aquarius EVO3,YARBO power.c,RGC-24,TORII MK3VCaps+silver wires+carbon resitors,CSP2+,DENON DP-A100+Karat17D3,GRADO PH-1,AURALiC Aries,GUSTARD X20-PRO ES9028PRO DAC,WA-Quantum chips,tubes WE 422A,GEC KT66,6N23P,USAF-596
  IP Logged
EdGuY
Seasoned Member
****


Fact is just a solid
opinion.

Posts: 133
Re: Potentiometers of Torii MK3 and CSP2+
Reply #1 - 09/10/17 at 10:07:00

And
Back to top



Tannoy Prestige Canterbury GR,ST-300mg,IsoTek Aquarius EVO3,YARBO power.c,RGC-24,TORII MK3VCaps+silver wires+carbon resitors,CSP2+,DENON DP-A100+Karat17D3,GRADO PH-1,AURALiC Aries,GUSTARD X20-PRO ES9028PRO DAC,WA-Quantum chips,tubes WE 422A,GEC KT66,6N23P,USAF-596
  IP Logged
Lonely Raven
Seasoned Member
****


Jack of all Trades,
Master of None

Posts: 3567
Re: Potentiometers of Torii MK3 and CSP2+
Reply #2 - 09/11/17 at 22:54:30

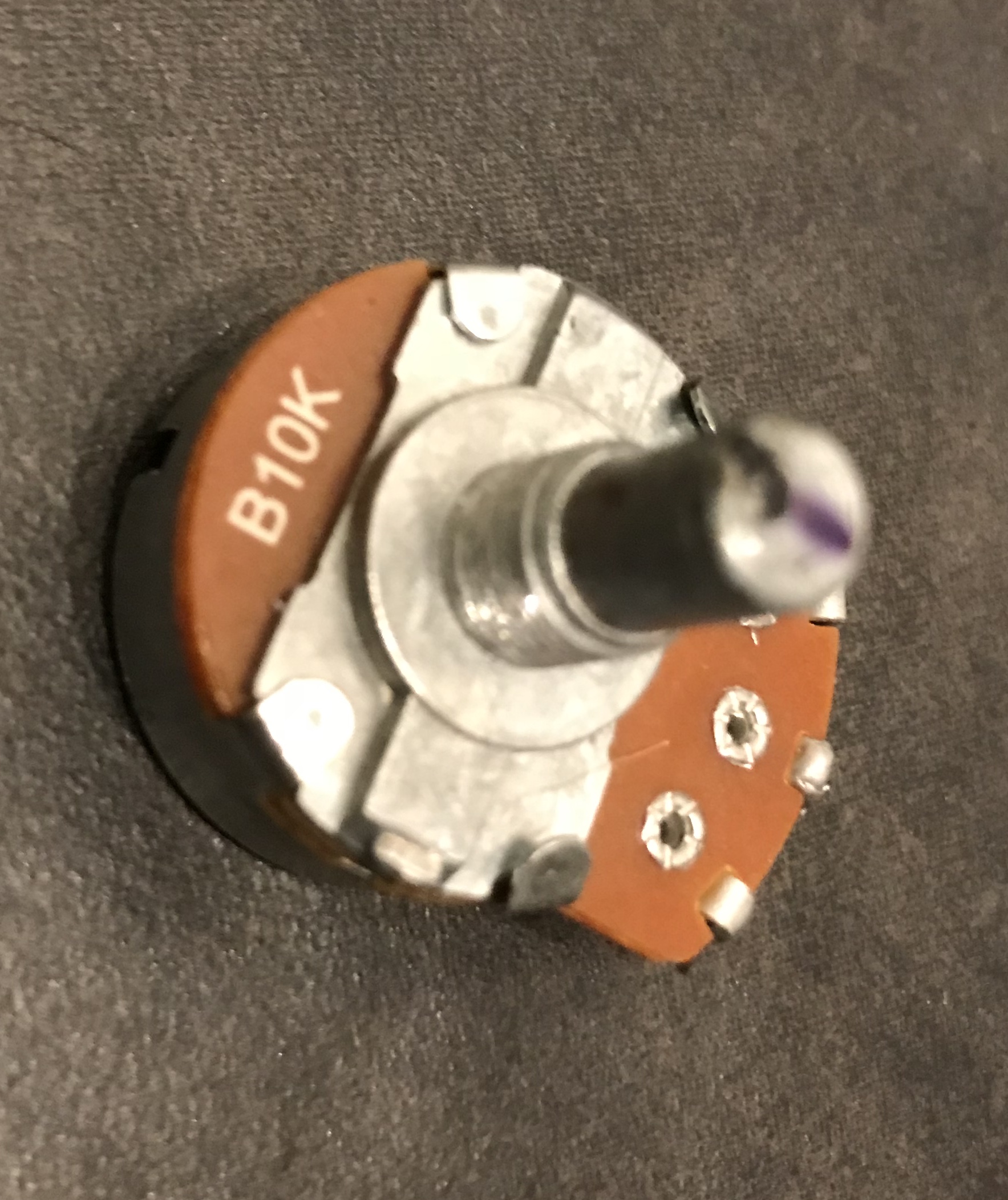

Pop them out, on newer pots it's usually screen printed on the circuit board rather than stamped in the metal like the pots of days past.


Back to top


WWW Lonely Raven   IP Logged
EdGuY
Seasoned Member
****


Fact is just a solid
opinion.

Posts: 133
Re: Potentiometers of Torii MK3 and CSP2+
Reply #3 - 09/12/17 at 05:26:31

You right, I found type markings and replaced all pots. Now I can adjust more precisely for example gain and balance R & L channels when using unmached tubes. 10 clicks attenuator on preamp was not accurate enought at all for that purpose.
Back to top



Tannoy Prestige Canterbury GR,ST-300mg,IsoTek Aquarius EVO3,YARBO power.c,RGC-24,TORII MK3VCaps+silver wires+carbon resitors,CSP2+,DENON DP-A100+Karat17D3,GRADO PH-1,AURALiC Aries,GUSTARD X20-PRO ES9028PRO DAC,WA-Quantum chips,tubes WE 422A,GEC KT66,6N23P,USAF-596
  IP Logged
Lonely Raven
Seasoned Member
****


Jack of all Trades,
Master of None

Posts: 3567
Re: Potentiometers of Torii MK3 and CSP2+
Reply #4 - 09/12/17 at 18:55:19

I've thought about click adjustments on the bias as well. Just seems like an expensive add-on though.
