Help me troubleshoot Mini Torii line out hum? (Read 5827 times)
danvprod
Verified Member
**




Posts: 26
Help me troubleshoot Mini Torii line out hum?
04/26/17 at 18:01:53

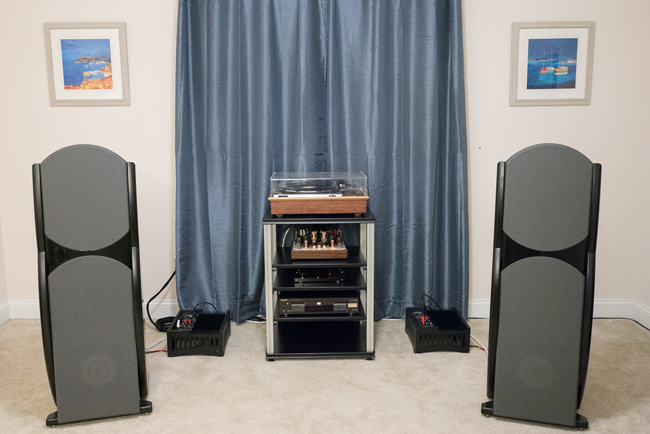

Trying to troubleshoot a challenge I am having with my system. Main amp is Mini Torii with analog and digital sources as well as plate amps, which power the open baffle subs in my GR Super V system (pictured). I am getting a strong 60 Hz hum/noise in my subs that seems to be coming through the line out of my MT.

Couple of things:
1) Not present when just the plate amps are on, no input.
2) The level of the hum/noise increases with an increase of the volume on the MT.
3) The noise is present with no inputs plugged into the Mini Torii.

I've tried:
1) swapping out interconnects from the LO of the MT to the sub amps (used 4 different pairs, including S/PDIF cables.
2) using the speaker outs of the MT into the high level inputs of the sub amp (not enough power to drive the sub amps properly).
3) Added power conditioning -- using a PowerFoundation AudioPrism Power Foundation III Power Line Conditioner. Added a better outlet (Hubbell spec. grade).
4) Upgraded power cords -- signal magic/ no difference.
5) Tried a DC blocking filter -- Emotiva CMX-2 -- no difference.

The power circuit that my audio system is on is regrettably on a AFGI (arc fault) breaker, which I can hear audibly resonating when I put my ear to the mains panel.

I've measured the line using an ENTECH power line monitor. The outlet I have plugged my gear in is the best of the bunch in the room.

Thanks in advance for your help brainstorming this issue. Happy to provide measurements or more information as needed.
