Completed DIY Zen se84cs/zs
12/27/16 at 21:42:59

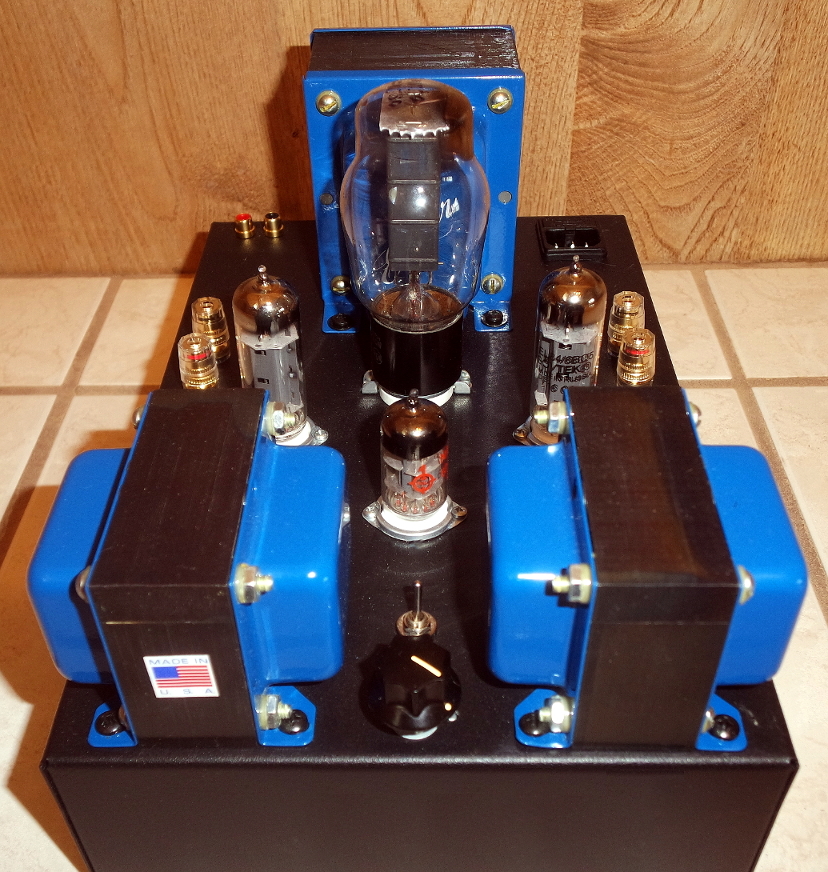

Recently completed a DIY Zen se84cs/se84zs clone.

Decware no longer provides DIY pt-to-pt kits so I built this from scratch.

I am happy that this Zen clone worked on first power up and voltages are in keeping with expected values. The output transformers are GXSE15-10K-6ohm with XPWR178 power transformer. I struggled with parts selection including choosing transformers, but the unit seems to be working fine.

Originally I was going to mount the output transformers inside the case as I wanted to emulate the clean Zen look, but mounting on top proved far easier. I wanted all top mounted input/outputs as I might put a wood frame around the case eventually.

I am running Fostex FE206EN and my next project is double bass enclosures.

All in all a success, except it seems I cannot bridge the amp into mono as the outputs are not floating. At least when I bridge into mono into a single speaker it doesn't seem like I am getting 5 watts or a significant increase in power. Any comments on this issue would be welcome.


IP Logged

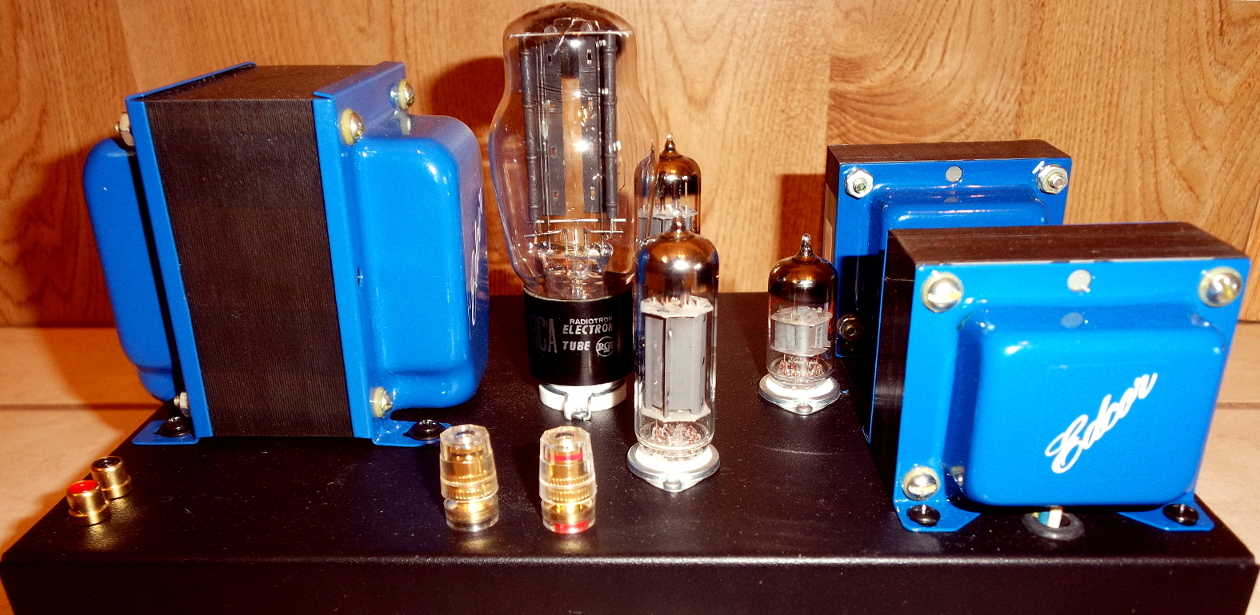

itseattlewa Verified Member Posts: 6	Re: Completed DIY Zen se84cs/zs Reply #1 - 12/27/16 at 21:47:08 Another pic.
Back to top	zen4.jpg IP Logged

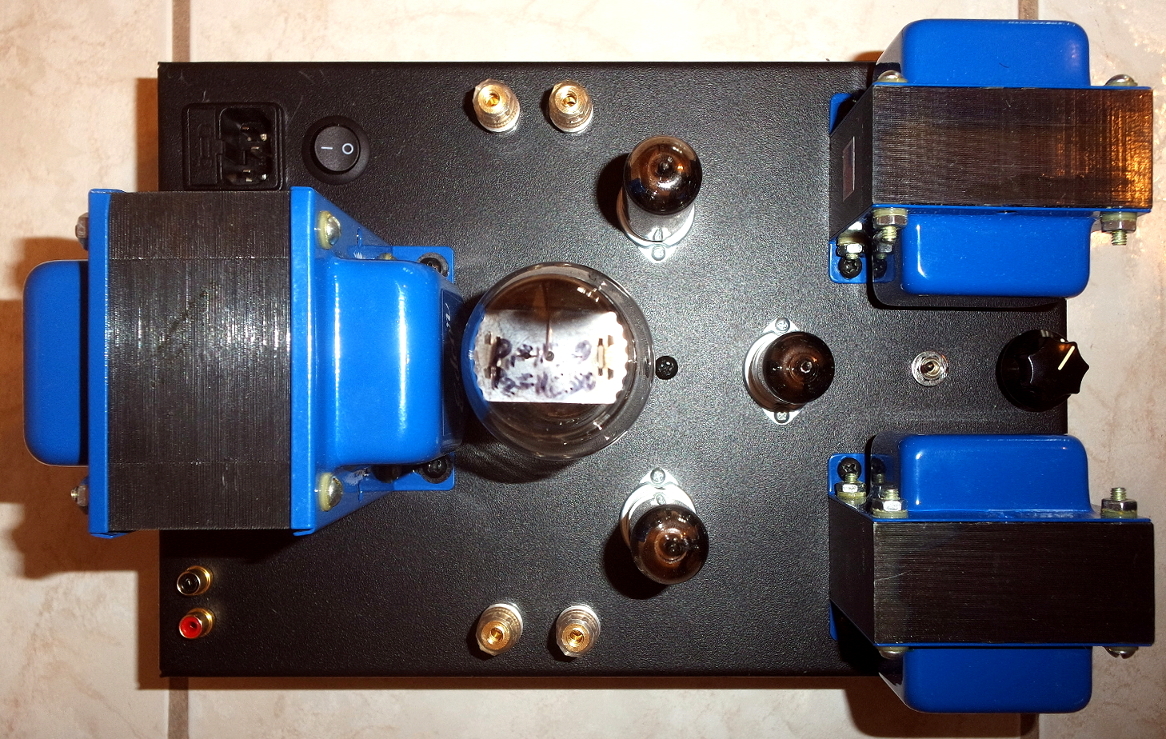

itseattlewa Verified Member Posts: 6	Re: Completed DIY Zen se84cs/zs Reply #2 - 12/27/16 at 21:49:22 Another pic.
Back to top	zen3.JPG IP Logged

Lonely Raven Seasoned Member Jack of all Trades, Master of None Posts: 3567	Re: Completed DIY Zen se84cs/zs Reply #3 - 01/02/17 at 20:38:28 Looks great! I have a kit off bought off ProgRob - I'm not even sure what all is in there, but it's one of the older circuit board kits. Maybe I'll have time later this winter...and hopefully looks as good as yours!
Back to top	IP Logged

Lin Ex Member	Re: Completed DIY Zen se84cs/zs Reply #4 - 01/02/17 at 22:11:47 Nice looking build. Curious why you didn't turn the chassis and put the transformers in a row along the back?
Back to top	IP Logged

itseattlewa

Verified Member

Posts: 6

Re: Completed DIY Zen se84cs/zs
Reply #5 - 01/02/17 at 23:24:55

I did consider horizontal with all transformers along the back, which would have looked good.

I was originally trying for a classic zen look with the output transformers mounted underneath, and I laid out the parts and cut the openings with that intention. But these OTs were too large to do that easily, so luckily mounting them on top worked out.

I relied heavily on the excellent 12 part build video showing the construction of a classic zen amp and wanted the layout similar to make the build easier. I laid out the components so that I could follow the build steps and sequences outlined in the video, which I did.

IP Logged
