Need Help with this.... (Read 6786 times)
Hank
Verified Member
**




Posts: 33
Need Help with this....
05/25/10 at 00:38:20

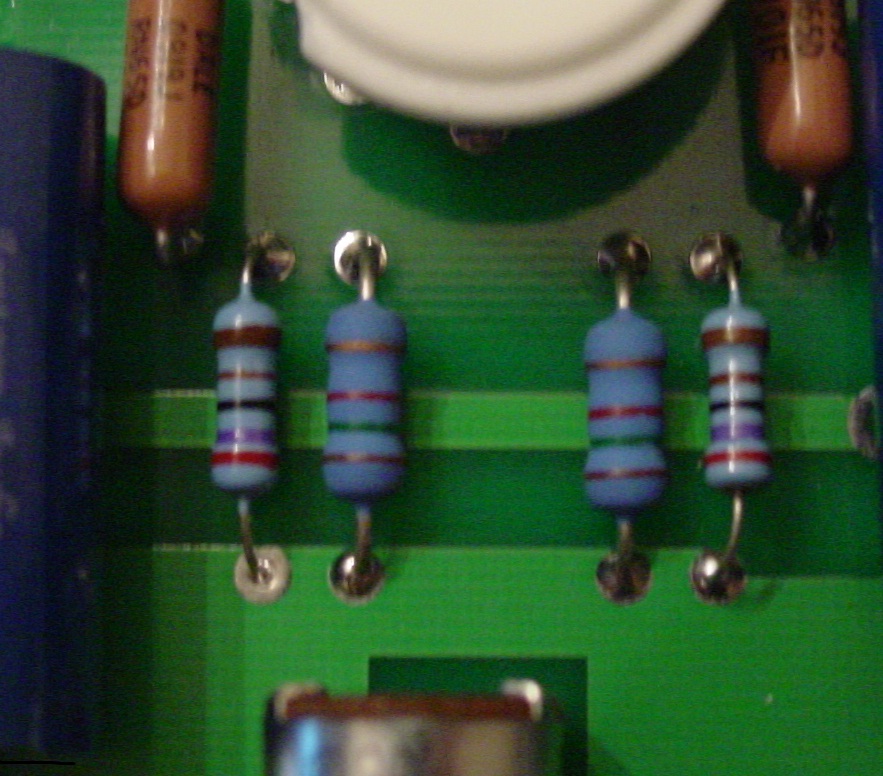

Are these resistors in the right place for these values:
From left to right: 2.7K, 1.5K, 1.5K, 2.7K

On the PCB they are between the preamp tube socket and the gain pot.

Thanks
Hank
Back to top

Decware SE84DIY amp; TABOO; CSP2; ZenHead; Mini TORII SE-X; SE84CKC SuperZen
Visonik HIFI DD-8300 Turntable; Bellari Tube Phono Preamp; Technics SL-PD5 CD Player
Trapezium Desktop Speakers; Tekton 8.1en Speakers; Grado SR60i phones
  IP Logged
Alan H
Ex Member
Re: Need Help with this....
Reply #1 - 05/25/10 at 18:32:36

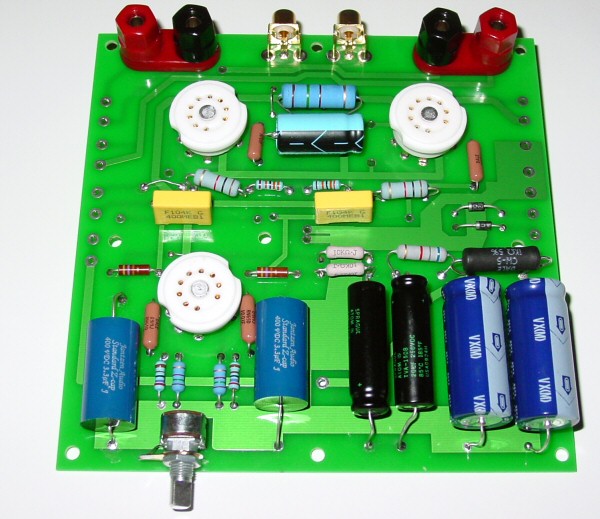

This image has the resistors on the other side of the board from the tube holder. You should be able to work it out though ...
Back to top


  IP Logged
Hank
Verified Member
**




Posts: 33
Re: Need Help with this....
Reply #2 - 05/25/10 at 21:34:44
Alan

Thanks for the image.  I checked the resistance on a multimeter before soldering them into place.  But on making a final check with those resistors in place, the readings were different than specified.

A quick check with Steve reminded me those resistors were wired in parallel and would not give rated values.

When all else fails....check the schematic!

Hank
