Power trans option (Read 3801 times)
YellowSnow
Verified Member
**




Posts: 1
Power trans option
02/22/17 at 07:06:56

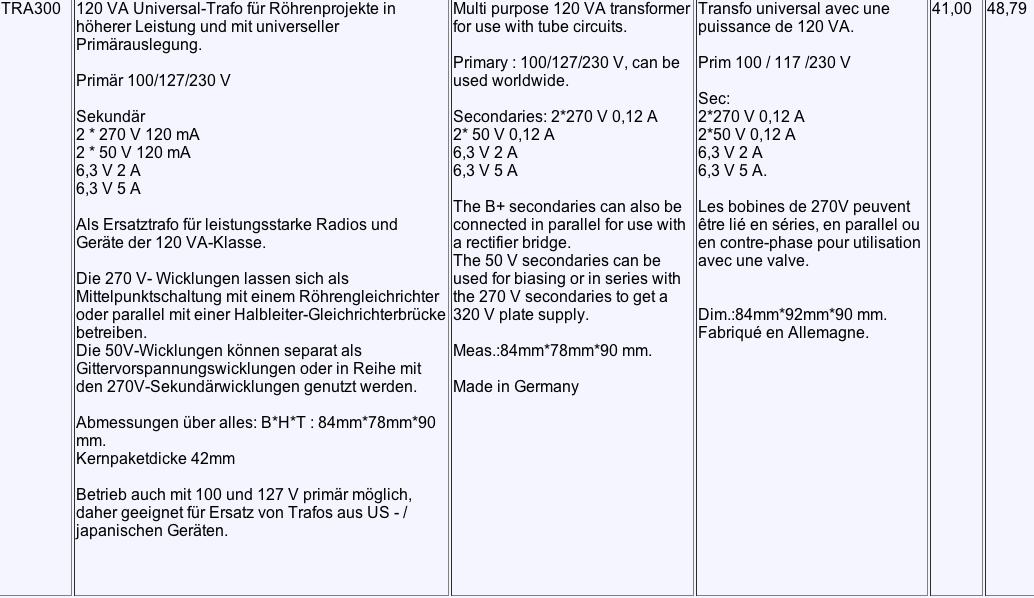

Hi, just ordered the board... here in germany I only can find this transformater On this site: http://www.die-wuestens.de/dindex.htm
Can I use this for the supply of the Zkit1...?
Solder terminals...
1 and 8 are the incoming 240V prim.
9 and 10/270V and 11 and 12/270V sec.
In parallel that would be 270V and 240mA...
But without CT...
Back to top


  IP Logged
Core32
Seasoned Member
****




Posts: 1858
Re: Power trans option
Reply #1 - 02/22/17 at 12:02:20

Using the secondaries in parallel to get 240mA would lower the voltage out of the rectifier diodes quite a bit. I'm not sure the series resistor value can be lowered enough to safely bump up the voltage near Steve's measurements. And you say doing this eliminates using the CT?
It appears you can get 320V by connecting a 50V secondary in series with a 270V secondary. That would get you a high enough voltage out of the 2 x diode rectifier on the board that no modification of the series power resistors would be necessary. Or you could lower that value resistor a bit to up the voltage if you wanted.
I'm afraid I don't know if the 120mA using a single secondary is enough but I suspect it is.
The heater secondary appears to have plenty of current.
