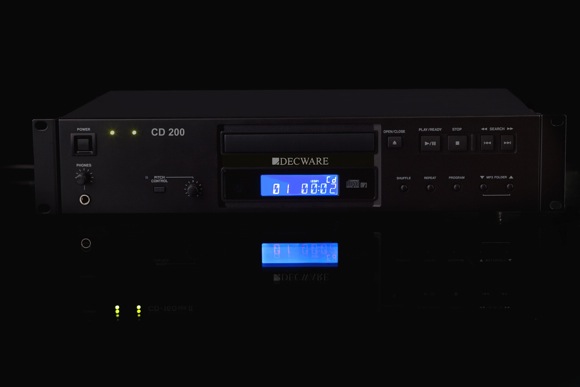

THE ZEN CD PLAYER has been REDESIGNED from the ground up!





The transport has been massively improved.  It's using a new DAC chip and clock, all new circuit boards, improved layouts and improved wiring.  In fact the only thing that remains the same on the inside of this machine is the rather huge power supply which we loved so much! This new machine, besides being a leap forward in build quality, makes an equally strong leap forward in sound quality.  The reduced jitter, increased bitrate and general character of the new DAC chip makes the ZCD sound overall smoother, slightly warmer and a bit more organic than our original model.


The new DAC chip is a bit of a surprise.  It's a panasonic MN6474A that is used in only a few players that I've been able to find.

( a list of DAC chips used in today's CD players and DACs can be found here: http://www.vasiltech.nm.ru/files/cd-players/CD-Player-DAC-Transport.htm

At nearly twice the cost of say the popular PCM1702 chip used in so many hi-end units, I wouldn't have expected to find it used in this Tascam player.


MN6474A
D/A Converter for Digital Audio Equipment

Overview

The MN6474A is a CMOS digital-to-analog converter with a built-in 16-bit digital filter for pulse code modulation (PCM) digital audio equipment.
It uses noise shaping technology to convert a digital signal into a PWM signal.
It contains a 4-fold oversampling digital filter that permits simplification of the low pass filter after the D/A converter, thus greatly reducing the power consumption of the entire D/A conversion system.

This of course lends itself well to our implementation in the ZCD player where the active 7th order low pass filter AND hi pass filters have been eliminated.  The chip is driving the tube stage directly with no filtering whatsoever.

The chip provides both regular and inverted phase outputs for both channels.
The chip contributes to cost and size reductions for CD players and other digital audio equipment.

Features

Built-in 4-fold oversampling digital filter
(ripple of only ±0.0072 dB within the supported band and attenuation of 62.7 dB within the cutoff band)

Internal resolution of 18 bits
Two's complement input (I2S input code also supported)
Built-in overflow limiter
No zero cross distortion
Sample-and-hold circuit is unnecessary
Output pin for detecting zero input
Single 5V power supply


How much better is the new ZCD200 vs. the original ZCD?  Well, the imaging is as good or better.  The frequency balance is better behaved, less aggressive.  The player is smoother with no loss of detail.

Actually I wasn't terribly thrilled when the CD160MKII was discontinued and the CD200 turned out to be a completely new animal because I had to start completely over again with the output stage design and voicing.  A tedious process when you have a million other things to do, but in the end it has been well worth my time and I'm happy with the end result.

I'm keeping the introductory price at $799 until Christmas.  Also I am almost done with the ZCD-200i that will have a built-in IPOD dock, so we are going to actually have two models this year.

Steve  :)

I probably should have waited for this one!

Best of luck, looks nice!

I remember the conversation about the CD200 back in August, as I was sending my unit back to Decware to have the (now standard) voltage adjustment added, along with the tube regulation    Had I only known

Yeah, that's how it happens, and I can't afford to just order a new ZCD, so I guess I'll be fine with my Sony SACD player and the ZCD until I can maybe afford the DAC. (Going to have to sell some instruments and audio equipment eventually to justify new stuff).

That's a great offer.  I don't think I'm going to take it, but it's a great offer.  Thanks!

I'll probably stick wth my ZCD and my Sony SACD player.  The Sony has qualities of the new ZCD that the ZCD i have is missing.  And it is built much better, amazing case and chassis. It's way underpriced, like a loss leader.  I'm using the ZCD currently, with a lot of work on adjusting my system it's very close, just a little tarter and more forward, and it doesn't play SACDs, which I really love.  But I'm getting use out of it now, I'll put the Sony back in soon, and then probably alternate.

And then in the future I'll try to get myself financially ready for your DAC.  With that I can replace CSP2, ZBox and a CD source or two.  It promises to offer more flexibility for my system, and sound quality too.  I can't spend any more dollars on stereo equipment now, in the last few years I've spent five or six thousand on Decware items alone. Have to show a little restraint. The bank account is not endless, and I have an expensive girlfriend.

No Mike, at this point in my life love is everything.  I feel so grateful that I found such a wonderful love after a period of deep sadness from losing my wife to cancer. Nadine wins my attention and dollars. We're at a juncture, things can go one way or another. They may go towards a larger home in which case I'll have no mad money. So. . . it's a good thing I have several great systems NOW.

When I said mods, I meant options!

Will you consider making a standalone iPod/iPhone dock?
I am finding the analog output from my new iPhone 3Gs playing Pandora Radio is stupidly good. And with the Integrated CCE mod the result is holographic. So a surgical transplant to a standalone chassis after your R&D stage is something I would personally be fairly stoked about. Also with a tube gain stage that can be optionally switched in or out to put some "meat on the bones" when the output of the source gets a little lean. Would all this fit in something as neat and tidy as say a Z-box?

I hear you now and I've considered a ZenHead but have not said much about it. Not knowing what coming down the line with digital both at Decware and otherwise gets a little dicey. The output of the 30 Gb iPod (non-touch) that you've seen me with is thin and a little weak but has had a good result with the CSP2. The iPhone is more robust on its own than the 30 Gb iPod and has better tone and weight but still can be thin at times depending on material. ZenHead design notes claim to help iPod in this regard so I understand your "MOST don't hear me" comments. I just think many are looking for a small, convenient, and less expensive DOCK/DAC. Your full out DAC effort is another thing altogether. The new ZCD200i is pretty enticing, but so is the ZenHead as a tidy and useable solution for portable clean, strong iPod output/interface. I heard or read that the iPod touch and iPhone3G DAC's are better than the classic iPod and I can hear it at home so must be something to that. ZenHead/ZCD???
BTW you wouldn't believe the non-spec tubes I've been rolling in the center spot on the CSP2 and on the Integrated. 6CG7 and 6BS8 as well as 12AV7. The results have been eye opening and very good. Lower than spec heater voltages allow a lot of experimenting with twin triodes though it can get noisy with the wrong tube. Ever consider adjustable heater voltages and tube regulation for the input stage of the CSP2? Would give a lot of flexibility? Sorry OT

OH forgot to ask is there a lot of gain above the iPod max output with the ZenHead?
Nevermind answered my own question. Saw the gain switch on the board and the impedance adjust.
