New NFX Plans? (Read 17867 times)
ET
Ex Member
New NFX Plans?
06/30/08 at 22:41:41
hi i live in Canada and im going to start building your NFX speaker enclosure and i was wondering if your going to be updating the plans soon if so when? so i can know if i should wait for the new plans before i build them?
Back to top


  IP Logged
Steve Deckert
Administrator
*****


If the 1st watt
sucks why continue?

Posts: 6246
NFX 3D CABINET PLANS
Reply #1 - 07/01/08 at 04:09:49
Well, a real boner on my part.  I spent countless hours last fall doing new cabinet plans for the NFX.  Being such a complex cabinet to build, it requires some really good plans.  Yesterday I discovered the plans on the web site for the NFX speaker were still the original single page version.

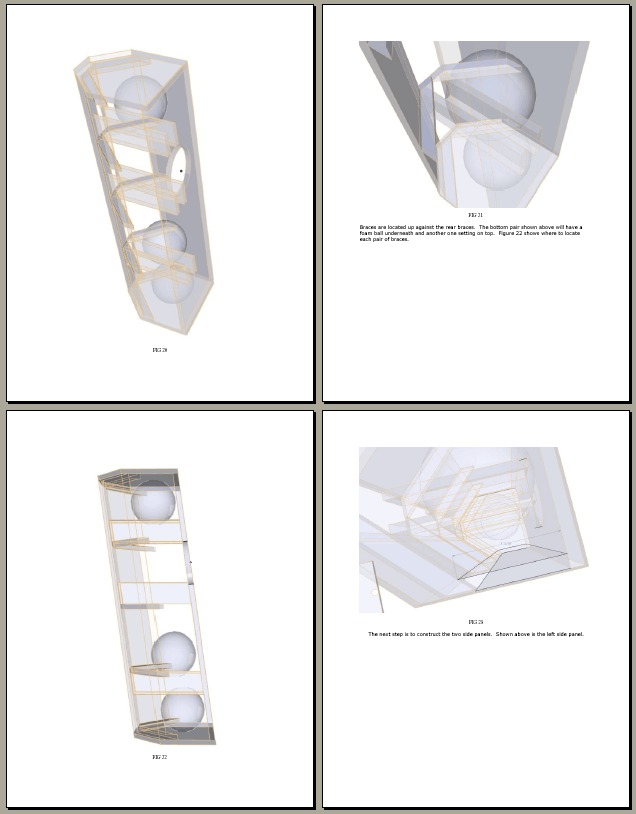

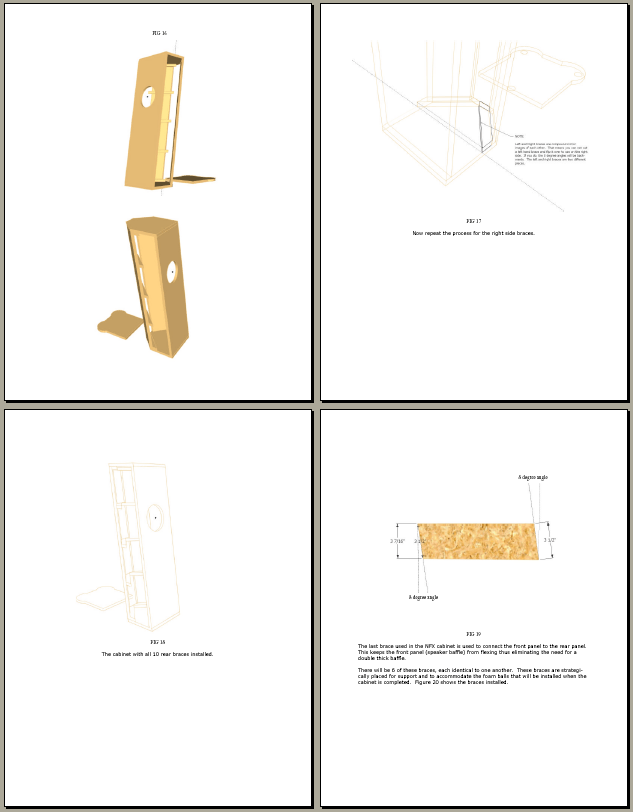

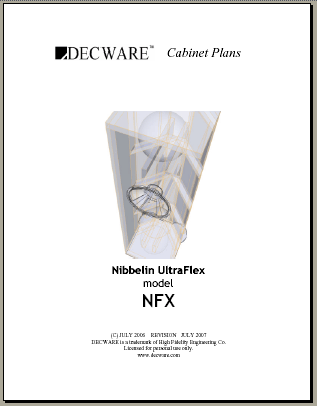

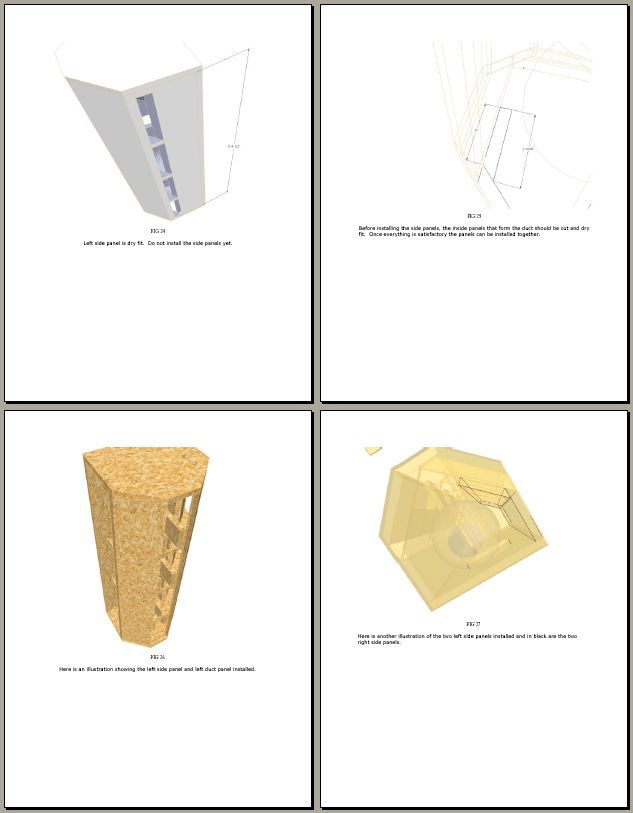

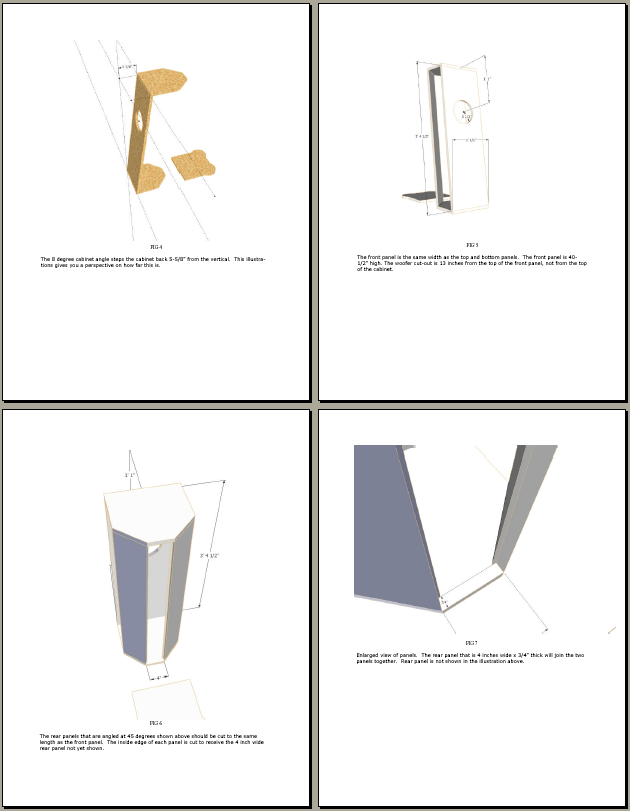

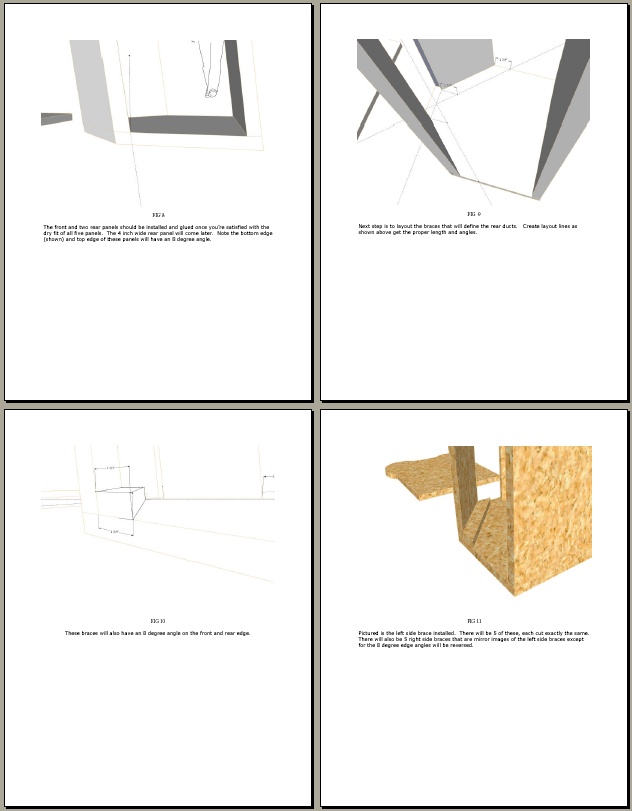

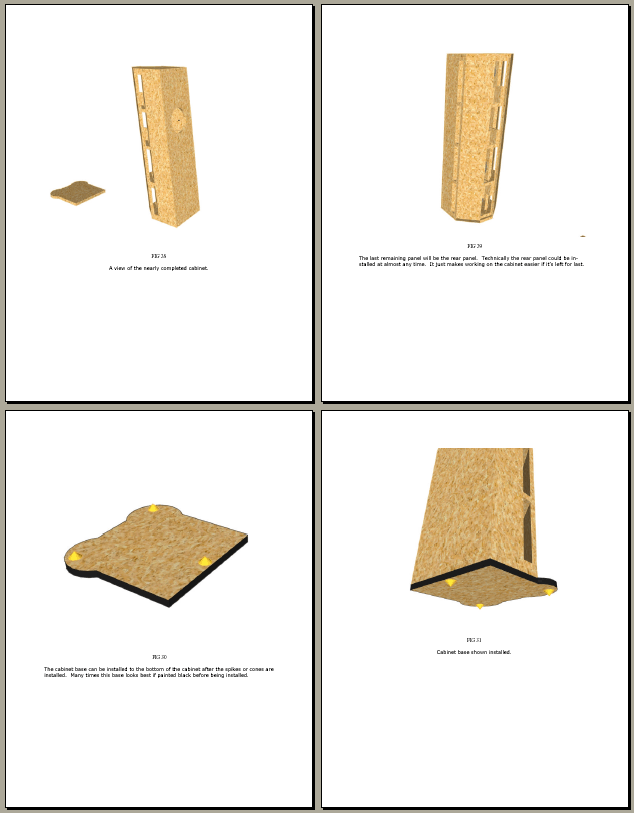

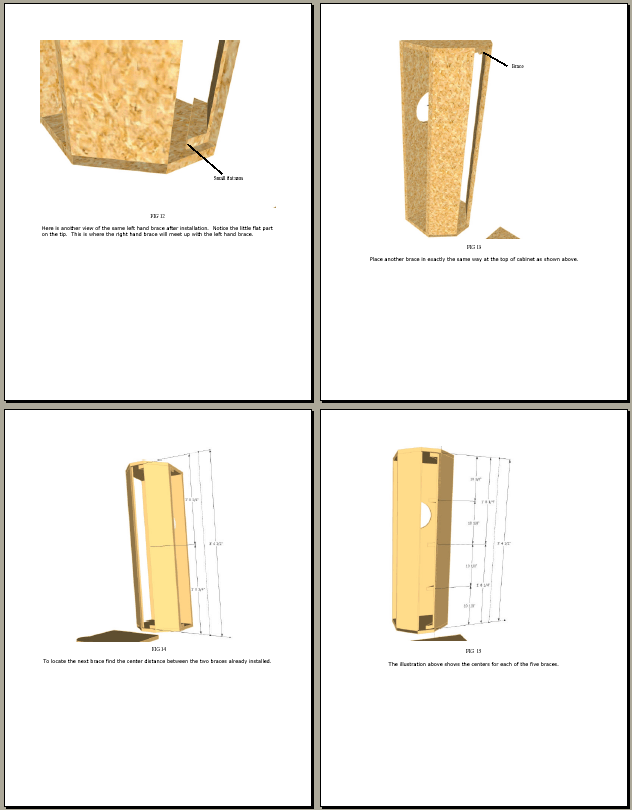

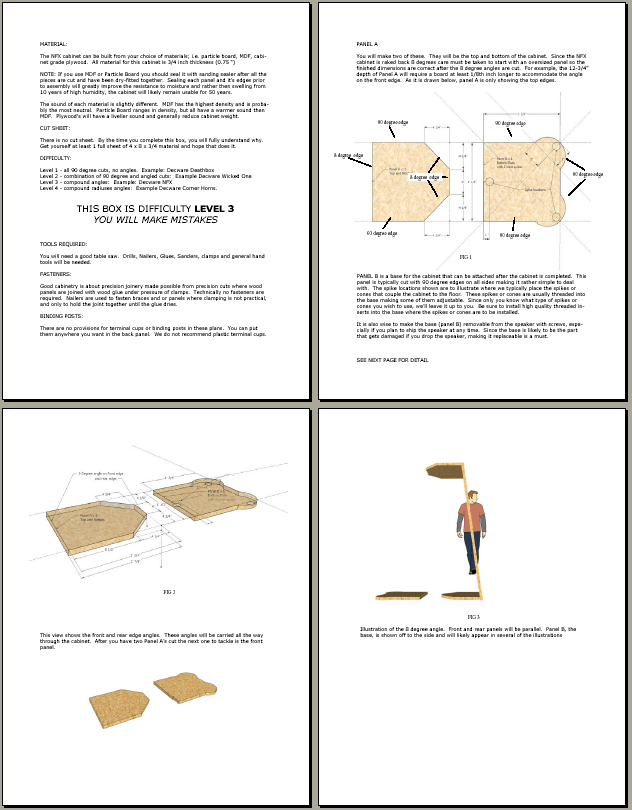

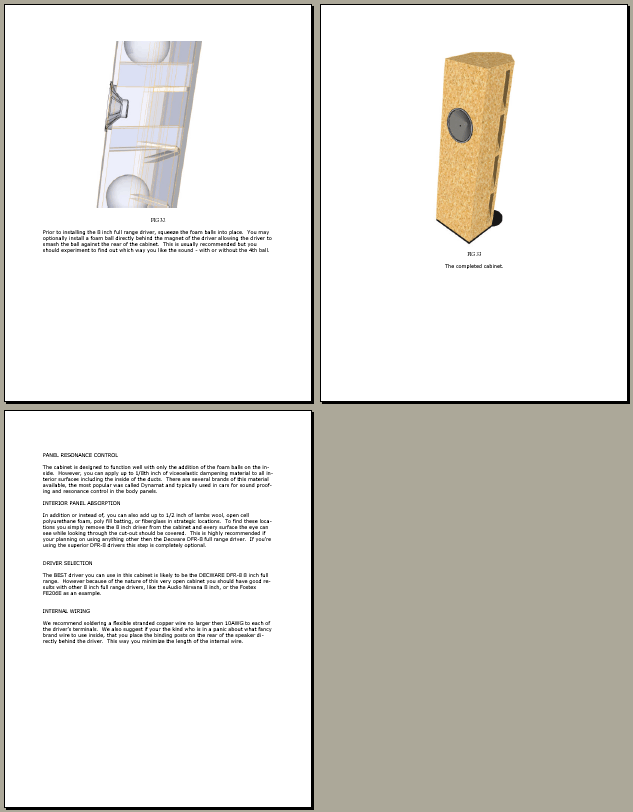

So I have fixed the link needless to say, and am including the screen shots from the 30 some page manual below:





















Hope this helps Embarrassed
Back to top


WWW   IP Logged
ET
Ex Member
Re: New NFX Plans?
Reply #2 - 07/01/08 at 18:01:45
yes it did thank you very much!
Back to top


  IP Logged
ET
Ex Member
Re: New NFX Plans?
Reply #3 - 07/15/08 at 02:58:50
hi i have another question about the NFX plans. i have the outside shell made of MDF i would like to use a higher quality wood inside what type do you recommend?
Back to top


  IP Logged
