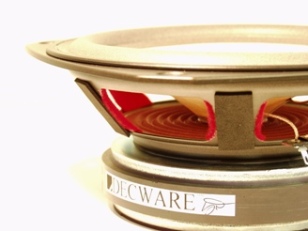

Developed for our own loudspeakers, the DFR-8 solves the shortcomings of full range drivers with completely unique design solutions. You can read about them in the white paper.



The result is no mid-range/treble shout. Needs no tweeter. Has real bass. 96dB efficiency with 1 watt.



This is the actual driver used in our
High Definition Tower speakers and the NFX.  It is now available for the DIY speaker builders.






10 % RESTOCK FEE

DFR-8            $325.00 pr.

 add to cart
ADD TO CART

Buy Now View Cart or Check Out







The DFR-8 utilizes a diaphragmatic suspension that absorbs modal resonance's in the cone better then any other system in use today.

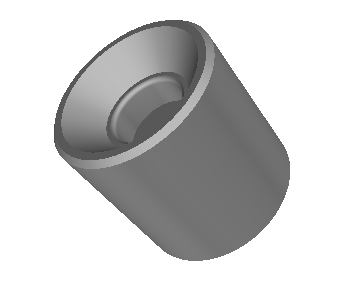

It also uses a specially designed active phase guide that again is superior to conventional phase plugs.


Read about the phase guide design here!




SPECIFICATIONS

  • Decware phase guide installed
  • Modified ES banana pulp cone
  • 110mm magnet
  • 38 Hz to 20 kHz
  • 208mm Flange - 8 inch
  • Cut-out 182mm
  • Depth 87.5mm
  • Sensitivity 1W/1M 96 dB
  • Nom. Power 90 Watts
  • QTS 0.23
  • QMS 3.03
  • QES 0.23
  • RE 6.69 ohms  8 ohm nominal
  • VAS 54 ltrs / 2.01 cubic feet
  • Net weight 3400 grams / 7.58 lbs
