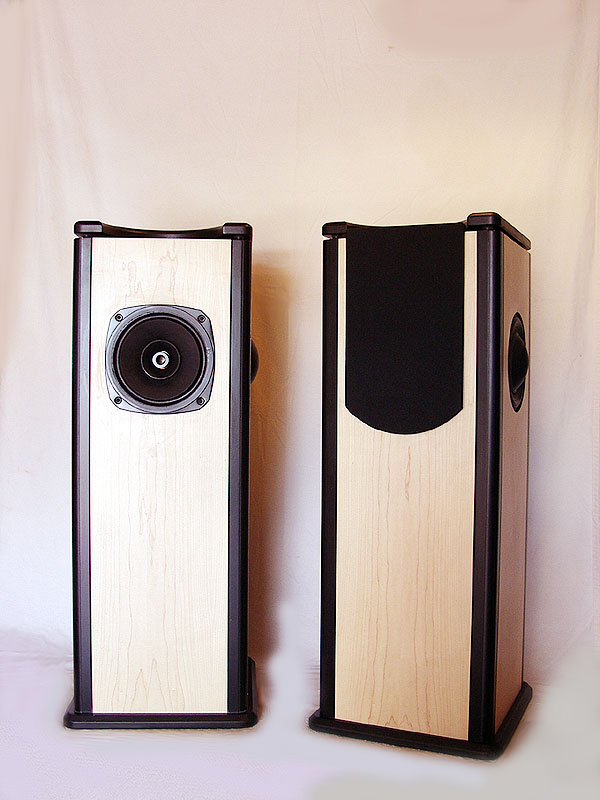

ABOUT THESE FINE SPEAKERS
These are single full range drivers with no
crossovers in one of the most esoteric cabinet designs ever done.
A multi chamber design where each chamber is tuned differently
and cross-coupled to feed an averaging chamber in the bass which in
turn feeds a vertical transmission line that is loaded by a dispersion
plate on the top of the cabinet. Side firing passive radiators are part
of the cross-coupling of the internal chambers and dissipate the
speakers rear wave to prevent a boxy sounding midrange. They are
also part of the overall low frequency tuning. Short of a
true horn, no other reflex cabinet offers damping across such a wide
bandwidth far exceeding the normal 1 octave you get from a reflex box.
As a result, this speaker has jaw dropping power handling and SPL
capabilities with high definition that extends to the lowest
frequencies. At 96dB with 1 watt it is also ideally suited for
small single ended amplifiers with as little as 2 watts.
Sonically these speakers are smooth with good
weight and lack the typical lean signature and shouty midrange of other
single driver designs. The Decware
Modified Fostex drivers don't hurt either! The phase
guide extends the response and air on the top end to a point where
you'll never find it lacking. Adding a tweeter at 10K will not be
needed.
If you are an imaging and soundstage driven
audiophile this is guaranteed to be one of the best.
Standard finishes come with a 30 day money
back guarantee. If you don't like these speakers for any reason
you can return them for a complete refund less a 10% restock fee. Our
way of making it as easy as possible to audition speakers in your home
for a minimal risk.
PLANS & KITS
Design notes
Owners
manual in pdf format
|
