ZKIT5
Single tube power supply kit


Perfect for our ZKIT4 gain stage.

Thanks to the new Decware EM0705 Power transformer, projects with a single tube are easier than ever!  If you've ever tried to find a small high quality transformer like this you already know it's not easy!

This transformer has a dual primary 120V / 240V with a 125V 15ma secondary and a 12.6 volt 0.3A heater supply.

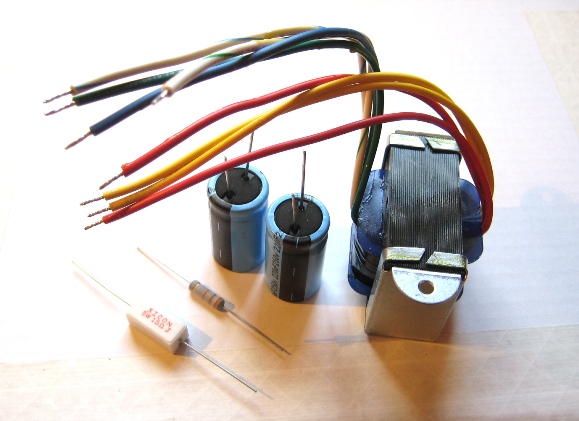

The kit above is a simple but very effective supply for a single tube, such as a 12AX7.   INCLUDED but not shown are 4 diodes to create the bridge and one 3 position terminal strip.

Mounting centers on transformer are 2-13/16th inches.  Height is 2.0 inches. Width is 2.0 inches.

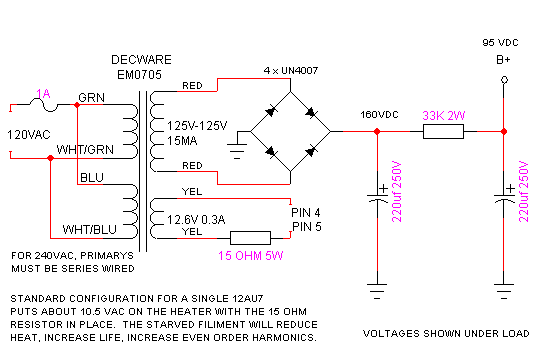

SCHEMATIC of ZKIT5 (standard supply)

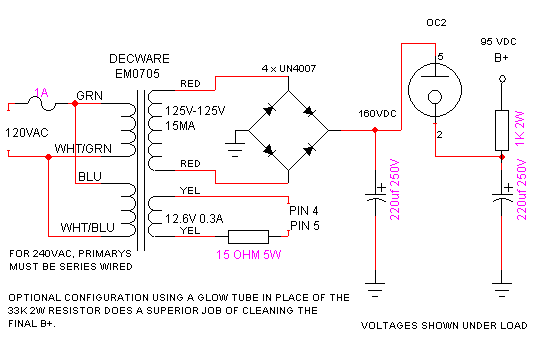

 SCHEMATIC of ZKIT5.1 (tube regulated supply)





PRICING

ZKIT5

 $50.00

add to cart ADD TO CART

Transformer, caps, resistor, diodes, terminal strip.


ZKIT5.1

 $79.00

add to cart ADD TO CART

Transformer, caps, resistors, diodes, terminal strip, OC2 tube, socket.
