Model  SE84CSP  / Zen Triode Select Audiophile Pre-Amplifier

INTRODUCTION

This little preamp has an interesting design history that can be found in our recent article titled
"PRE AMPLIFIERS - do they help or hurt the sound?" It was designed to make your amplifier(s) sound better without any tradeoffs - this even applies to our Zen Triode amps!  We're so sure this preamp is the missing link in your system that we guarantee it or your money back! Built with the same purist design as all of our products.

DESCRIPTION

Single-Ended Triode Preamplifier with dual inputs and front mounted volume control for ease of use.  Features a dual triode wired as a cathode follower driving triodes configured in a constant current source for incredible dynamics and speed.  NO circuit boards, no solid state parts!  Built to last a lifetime with extended tube life and no adjustments - ever.

MODEL SE84CSP  $640.00

FEATURES

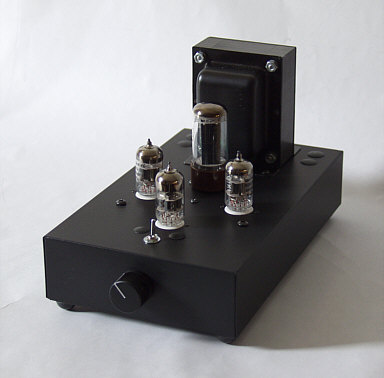

ALPS volume control and input selector are located at the front for ease of use.

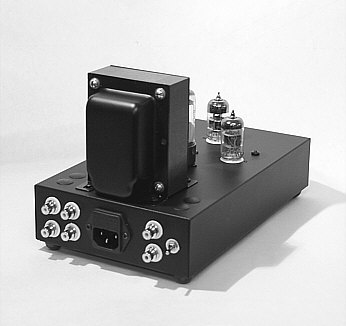

Removable power cord and on/off switch are located at the rear as are the high quality Gold/Teflon RCA input and output jacks.

Cathode follower output stage will drive even the most stubborn amplifiers while maintaining the correct frequency balance.

Powder coated steel chassis is sealed with no vents to let in dust, smoke, or other contaminants including stray RF. Stays new looking inside even after 20 years!

Massively oversize power supply using tube rectification and high grade caps offer bottomless power without getting hot - in fact you can leave it on 24hrs a day with no worries - recommended for increasing tube life.

In the Zen tradition, top grade internal parts are all hand point-to-point wired with parts leads and no hookup wire in the signal path.

Tube compliment is made up of your choice of 6N1P, 6DJ8 or 6922's.  Circuit is self-biasing. Rectification is your choice of 5Y3GT, 5AR4, or 5U4.   The SE84CSP ships with two 6N1Ps, a 6922 and 5Y3GT for reference.

Ceramic tube sockets with gold pins are used for all three audio tubes.


ADDITIONAL FEATURES

• Single Ended CLASS A operation

• 2 channel stereo
• 2 pair of inputs with input selector switch
• ALPS volume control
• Self-biasing for optimum performance and no adjustments - ever.

• Tube rectified power supply

• Point-to-point hand wired with no circuit boards or solid state parts

• High reliability / low maintenance
• Computer grade supply caps.
• Precision metal film resistors.
• Same signature coupling caps used in our more expensive amps.

HAND MADE IN THE USA

SPECIFICATIONS

OWNERS MANUAL FOR SE84CSP

SE84CSP Owners manual.pdf

Here are some short papers on choosing the right preamp, or how to determine if you even need a preamp.

How to choose the right preamp - Oct 2004
This should clear things up for you when you consider preamps

Preamps - Do they help or hurt the sound - May 2004
Type A, type B and type C
