Model
DEC-343
|
DECWARE
Mod for Pioneer DVD/CD/CDR player
|
NOTICE:
Pioneer
has discontinued the DVD-343 player. We still
offer this mod to existing units. If you don't own one,
they show up frequenty on ebay.

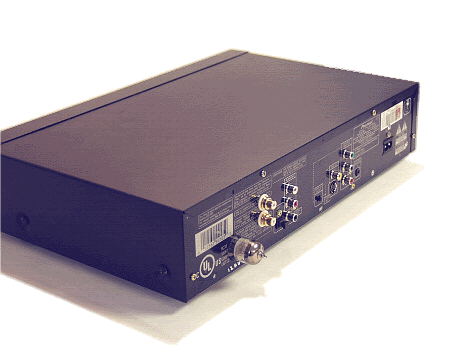

This
player features a single ended triode output
stage where the tube is visible and accessible from
the rear. It uses a dual triode (12AU7)
and may be rolled with 12AT7 and 12AX7 tubes as
well. This is probably the most popular of
all signal tubes making them easy to acquire with a
large variety to choose from.
A
new pair of gold/Teflon high quality output
jacks are also installed on the rear representing
the tubed output. The stock output jacks are
still active. That comes in handy sometimes
if for no other reason then to A/B the stock output
stage with the added tube output stage. Huge
difference.
The
tube stage features it's own power supply. It comes
on when the CD player is plugged in. It remains
on 24hrs a day so it's always properly warmed up
and ready to play at all times. The CD player itself
turns on and off with the power button or remote.

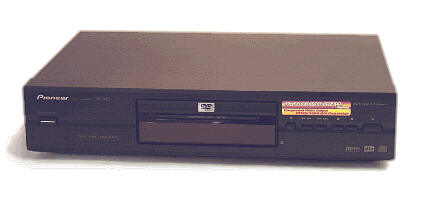

This
unit is a wonderful little DVD player too! (Enjoy
movies? Why shouldn't your movies sound better
too?) It has a 24/96 DAC and plays CDs,
DVDs and all computer burned CD's.
|
SPECIFICATIONS
- 10-bit/27MHz Video DAC with Viter-Bi Error Correction
- 96kHz/24-bit DAC for superb sound quality
- Component Video Output (DVD, Video CD)
- DTS® (Digital Theater Systems) Digital Out (DVD)
- Dolby® Digital Digital Out
- Twin-Wave Laser Pickup for CD/Video CD/CD-R/CD-RW Playback
- Advanced GUI (Graphic User Interface)
- High-Speed Loading
- Program Memory (Chapter/Title) (DVD)
- Quick Resume Function (DVD, Video CD)
- Condition Memory (DVD)
- Continue Play Memory (DVD, Video CD)
- Personal Modes
- "Heads-Up" Remote Control Unit
- Twin-Triode cathode
follower output stage with separate high quality
output jacks and dedicated power supply.
|
|
|
|
OWNERS
MANUAL
DV343.PDF
|
|
POWER REQUIREMENTS:
Pre-configured for either
120 Volt 50/60 Hz 20 Watts
NET WEIGHT:
13 LBS
SHIPPING: 15 LBS (each)
DIMENSIONS:
16.5" W x 12.0" D x 4.25" H
WARRANTY:
90 DAYS PARTS & LABOR
on DVD Player with
5 YEARS on
TUBE
OUTPUT STAGE
to original owner
1
year on tube.
|
|
PRICE OF
THIS MOD IS $400.00
If
you have one of these units and want it modded,
please call or
e-mail us.
|
