MORE FEATURES

  • Single Ended Triode OTL
  • Direct coupled stages
  • No circuit boards
  • Adjustable gain for each channel
  • Tube rectification
  • Self Biasing
  • DC Heater supply
  • Custom transformers
  • World AC Compatible
  • Removable cord
  • Alps Volume Control
  • High mass chassis
  • Dual inputs
  • Stereo and Mono outputs
  • Headphone output
  • High Reliability
  • Optional hardwoods
  • Reference fidelity
  • Lifetime warranty





model
CSP2

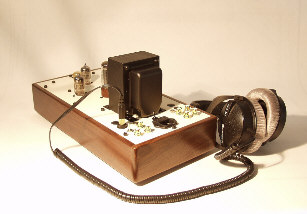

Stereo preamplifier with dual inputs, stereo and mono outputs, OTL headphone output and user adjustable gain from 0 ~ 36 volts for each channel. No noise. No hum.



VOLTAGES

This amplifier comes standard with our World Voltage Compatible Transformer. Your amp will be automatically wired for the correct voltage for your country and be supplied with the correct removable power cord.

RELATED ITEMS

DHC Power Cords
DSR Silver Interconnects

Owners Manual.pdf



SPECIFICATIONS

Weight   13 lbs. ea.
Dimensions   8.5" H x 7.250" W x 14.75" D
Circuit type   Single ended Class A Triode OTL
Output   Adjustable 0 ~ 36 volts
Input voltage   250mv ~ 5.0 volts
Noise / Hum   Less   than 0.5 millivolts
Input Impedance



 100 KOhms
Output Impedance



 < 60 ohms
Response   5 Hz ~ 70 kHz
Feedback   ZERO negative feedback used
Rectification   5Y3GT tube rectification
Signal tubes   6N1P or 6922 or 6Dj8
Transformers   Transformer custom made for this   pre amplifier by Decware
Biasing   Self-Biasing circuit - never needs adjustment
Resistors   All resistors are audiophile grade
Signal Cap   Audiophile grade poly film/foil
Filter Caps   All filter caps   are premium quality
AC cord   Fused IEC connector provided with removable power cord
Consumption   65 watts at full power
Input jacks   RCA type 24K Gold / Teflon
Output jacks   RCA type 24K Gold / Teflon
Headphone jack



 1/4 inch stereo jack
Warranty   Lifetime to original owner / 90 days on tubes


 MODEL CSP2
Zen Triode Preamp

Factory Direct Price
$795.00

complete with premium tubes

We accept MC VISA AMX DISC JPC and Paypal

add to cart ADD TO CART

    10 % RESTOCK FEE

Buy Now  View Cart or Check Out
