MODEL DBK-212

PICTURES OF ADJUSTABLE INSERT

The insert is always built first and then the outer panels are wrapped around it for a perfect fit.

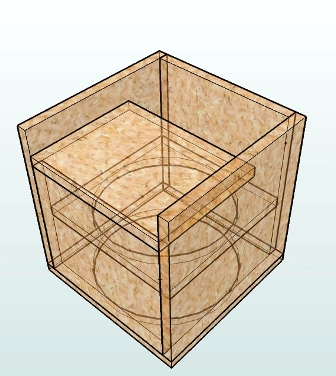

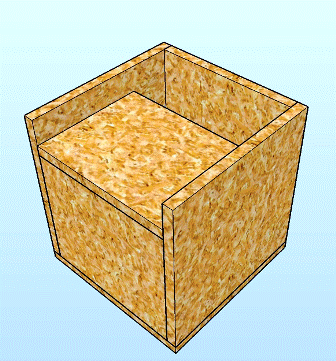

Here is the insert shown upside down with a
transparent version below:

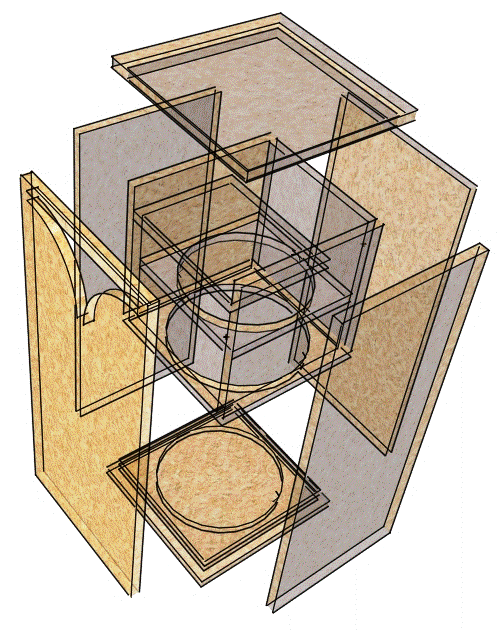

And here is how the insert goes inside the box
(again shown upside down).

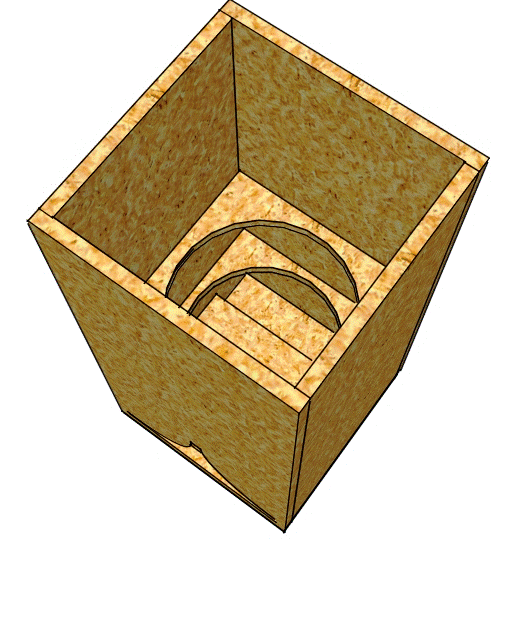

And a view of the fully assembled box with top removed.

Obviously, the woofer can be installed onto the insert prior to installing the insert in the box. Once installed, the lid is pressed into place and the box is ready to tune.

Tuning this enclosure simply requires installing it into your car (on its side) and setting the insert in the approximate center of the box followed by playing music at low levels and adjusting the position of the insert for the desired (or most) bass. Once a position has been determined for the insert, the insert is permanently installed by screwing it into place from the sides of the box. Also, a thin bead of sealant should be placed around the outside edge of the insert to stop any possible air leaks.
