DIY room treatment (Read 5656 times)
tom.gnade
Verified Member
**




Posts: 29
DIY room treatment
11/10/15 at 19:05:57

Hi,

I see from Steve's listening room that he has some much larger diffusers that appear similar to the standard DIY offering. I wonder if plans are available for those - I assume they handle much lower frequencies. There are also rounded corner traps and what appear to be absorbers.

Has anyone built these them?

I also wonder if the 24x24" size that is commercially sold would be more convenient to build - can the DIY size just be scaled up, or is the design completely different?

Thanks!
Back to top



Decware ZOB / Vandersteen 2wq / Sugden A21ap / Promitheus TVC / Rega Saturn / PS Audio P300
  IP Logged
DPC
Seasoned Member
****




Posts: 149
Re: DIY room treatment
Reply #1 - 11/10/15 at 22:43:45

The short answer is "yes" they can be made in just about any size you want.

That said, I found even the kit form to be a very time consuming project.

You will find many plans on the net.  Pick your poison!
Back to top


  IP Logged
DPC
Seasoned Member
****




Posts: 149
Re: DIY room treatment
Reply #2 - 11/10/15 at 22:47:13

Also note that I am a DYI room treatment hobbyist.

Lots of benefit for little cost!
Back to top


  IP Logged
tom.gnade
Verified Member
**




Posts: 29
Re: DIY room treatment
Reply #3 - 11/11/15 at 01:23:08

The beauty of my current situation is that I have a large dedicated space in my basement that is just in studs, no drywall or finish of any kind. I have a clean slate, and I can pretty much do whatever I want.

Do you have any particular recommendations?
Back to top



Decware ZOB / Vandersteen 2wq / Sugden A21ap / Promitheus TVC / Rega Saturn / PS Audio P300
  IP Logged
lLance
Seasoned Member
****




Posts: 164
Re: DIY room treatment
Reply #4 - 11/12/15 at 02:19:01

Yes, even the kits are a bit labor intensive. Steve just sent an email with a discount on assembled diffuser kits. The picture is taken from my room earlier this year. It took me 2 days and a gallon of wood glue.
Back to top



ZMA, ZTpre, VPI Scout 1.1 & Soundsmith Zepher Cart, Janszen zA2.1 Speakers, PS Audio DSD, Berkeley Audio Alpha USB, PS Audio P10, Win 8 & J River app, Morrow Cables Triode Wire Labs #7 & Lessloss PC, voodoo AES
  IP Logged
tom.gnade
Verified Member
**




Posts: 29
Re: DIY room treatment
Reply #5 - 11/12/15 at 04:27:22

I saw that email. The problem is that my room is something like 22'x18', so that's a lot of diffusion. I'm a DIY guy, so I'm tempted to just build 20 of them or something crazy, but I'm sure I would regret it after the first 2.
Back to top



Decware ZOB / Vandersteen 2wq / Sugden A21ap / Promitheus TVC / Rega Saturn / PS Audio P300
  IP Logged
lLance
Seasoned Member
****




Posts: 164
Re: DIY room treatment
Reply #6 - 11/13/15 at 02:20:30

I have 22 diffusers and my room is 14.5 X 14.5'. That is an old picture. I have since removed some diffusers and added absorption. I also have bass traps in all 4 corners. The room now sounds great.
Back to top



ZMA, ZTpre, VPI Scout 1.1 & Soundsmith Zepher Cart, Janszen zA2.1 Speakers, PS Audio DSD, Berkeley Audio Alpha USB, PS Audio P10, Win 8 & J River app, Morrow Cables Triode Wire Labs #7 & Lessloss PC, voodoo AES
  IP Logged
tom.gnade
Verified Member
**




Posts: 29
Re: DIY room treatment
Reply #7 - 11/13/15 at 13:51:40

I'm sorry I don't see a picture, can you attach? I'm thinking of starting with green glue and drywall on the subfloors above, and some R19 insulation. Do you (or anyone on the forum) have experience with that?
Back to top



Decware ZOB / Vandersteen 2wq / Sugden A21ap / Promitheus TVC / Rega Saturn / PS Audio P300
  IP Logged
lLance
Seasoned Member
****




Posts: 164
Re: DIY room treatment
Reply #8 - 11/14/15 at 02:31:52

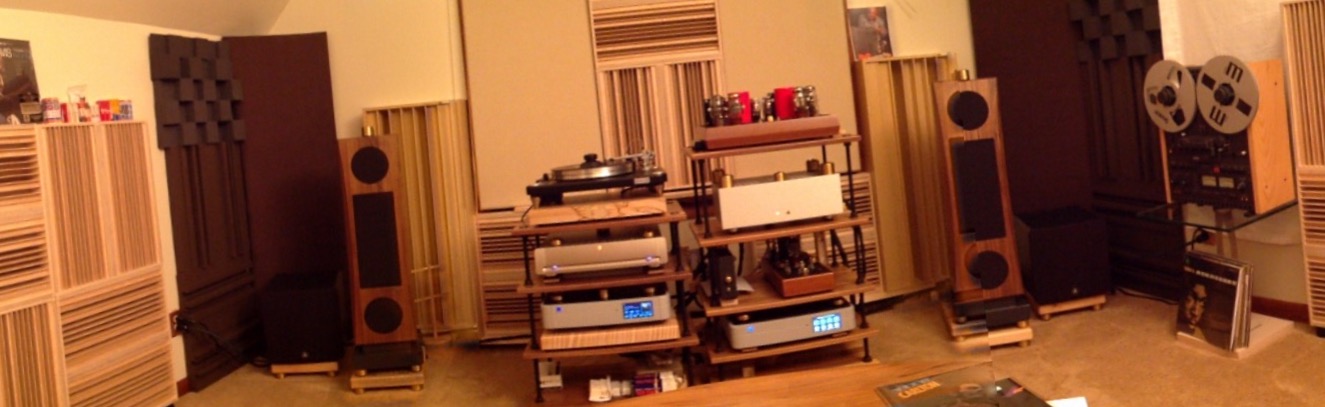

This is more recent
Back to top



ZMA, ZTpre, VPI Scout 1.1 & Soundsmith Zepher Cart, Janszen zA2.1 Speakers, PS Audio DSD, Berkeley Audio Alpha USB, PS Audio P10, Win 8 & J River app, Morrow Cables Triode Wire Labs #7 & Lessloss PC, voodoo AES
  IP Logged
tom.gnade
Verified Member
**




Posts: 29
Re: DIY room treatment
Reply #9 - 11/15/15 at 01:12:56

Wow, that is a lot of diffusion. Did you DIY any of that stuff or buy it all? What is that to the left of the corner bass trap, they look like diffusers but they seem like they're made of foam or something. Are they absorbers?
Back to top

« Last Edit: 11/15/15 at 01:14:52 by tom.gnade »

Decware ZOB / Vandersteen 2wq / Sugden A21ap / Promitheus TVC / Rega Saturn / PS Audio P300
  IP Logged
lLance
Seasoned Member
****




Posts: 164
Re: DIY room treatment
Reply #10 - 11/15/15 at 04:32:30

The corner is DIY bass traps I made to the exact height I wanted. Next to those are Auralex Q'Fusor, styrofoam, I just painted them. Above them also an Auralex product but made of foam. The vertical diffusers directly behind the speakers are GIK products, got a great deal at the end of CAF audio show. The rest of the wood diffusers are Decware kits. The kits do take a while to assemble but considering they are birch plywood, cut precisely and partially assembled already, I believe they are, like so many other Decware products, a great value.
Back to top



ZMA, ZTpre, VPI Scout 1.1 & Soundsmith Zepher Cart, Janszen zA2.1 Speakers, PS Audio DSD, Berkeley Audio Alpha USB, PS Audio P10, Win 8 & J River app, Morrow Cables Triode Wire Labs #7 & Lessloss PC, voodoo AES
  IP Logged
Archie
Seasoned Member
****




Posts: 682
Re: DIY room treatment
Reply #11 - 11/15/15 at 18:27:09

Quote:
I'm thinking of starting with green glue and drywall on the subfloors above


I'm not sure what you mean by Green Glue but if it's the "non-toxic" environmentally friendly glue then I recommend that you use the good old solvent based toxic glue if you want it to hold for the long term!  I'm a builder and the water based stuff is generally brittle and doesn't stick very well.

But would there be more logic in using "sound channel" between the drywall and joists as vibration/sound isolation?
Back to top


  IP Logged
Palomino
Seasoned Member
****




Posts: 1492
Re: DIY room treatment
Reply #12 - 11/16/15 at 18:19:45

Nice room, ILance!

I have built QRD, fractal, and skyline diffusers.  Unless you need lower frequency diffusion, buy the Decware diffusers.

I can't see them being much harder to put together than anything I mention above and you will save a lot of hassle.

If you don't want to build at all, here are a couple that look reasonable as well:

If you need lower frequency diffusion, these caught my eye on eBay:

http://www.ebay.com/itm/ATS-Acoustic-Diffuser-/221231381442?hash=item33826afbc2:...

I also lined the back of my room with these back when they were on sale:

http://www.ebay.com/itm/Top-Acoustics-FD-480-Fractal-Acoustic-Step-Diffuser-Pane...
Back to top



i7 Mac Mini with LPSU/SSD running Audirvana 2, Uptone Audio Regen on LPSU, Chord QuteHD with LPSU, DIY Belden ICs, Torii MKIII, SE34I.32, PS Audio P5 Power Supply, PS Audio Power Cords, Vintage Western Electric 16g Speaker wires, DIY Speakers
  IP Logged
tom.gnade
Verified Member
**




Posts: 29
Re: DIY room treatment
Reply #13 - 11/17/15 at 13:00:51

Do you think the top acoustics diffusers work? I can't find much about them.

http://topacoustics.com/
https://plus.google.com/116995310056198777949/about

It looks like this foam diffuser is the only thing they make.
Back to top



Decware ZOB / Vandersteen 2wq / Sugden A21ap / Promitheus TVC / Rega Saturn / PS Audio P300
  IP Logged
Palomino
Seasoned Member
****




Posts: 1492
Re: DIY room treatment
Reply #14 - 11/20/15 at 22:29:27

That's what I have in the back of my room.  I feel they work well.  Not as much impact as QRD diffusers but they definitely diffuse.
Back to top



i7 Mac Mini with LPSU/SSD running Audirvana 2, Uptone Audio Regen on LPSU, Chord QuteHD with LPSU, DIY Belden ICs, Torii MKIII, SE34I.32, PS Audio P5 Power Supply, PS Audio Power Cords, Vintage Western Electric 16g Speaker wires, DIY Speakers
  IP Logged
Jeff1
Senior Member
***




Posts: 58
Re: DIY room treatment
Reply #15 - 12/08/15 at 00:06:45

Other than the general basics of eliminating early reflections from sidewalls and ceilings diffusers and bass traps may take some trial and error depending on your room dimensions, speaker and listening position. I have used a reference book "The Master Handbook of Acoustics" to evaluate and build all of my treatments. The book covers what to use and formulas to help you along.
Back to top



Esoteric SA-50, ZMA, Legacy Sigs SE w/Metro Sub, PI Audio Uberbuss, All Cables OmegaMikro, Room treatment absorbers, diffusers and tube traps.
  IP Logged
